Handling of data in parameter sets. More...

Collaboration diagram for Parameter Data Handling API:

Functions
void	GfParmRemove (void parmHandle, char sectionName, char *paramName)
	Remove a parameter from a parameter set.
tdble	GfParmUnit2SI (const char *unit, tdble val)
	Convert a value given in unit to SI.
tdble	GfParmSI2Unit (const char *unit, tdble val)
	Convert a value from SI to given unit.
char *	GfParmGetName (void *handle)
	Get the name property of the parameter set handle.
const char *	GfParmGetStr (void parmHandle, const char path, const char key, const char deflt)
	Get a string parameter from the parameter set handle.
tdble	GfParmGetNum (void handle, const char path, const char key, const char unit, tdble deflt)
	Get a numerical parameter from the parameter set handle.
int	GfParmSetStr (void handle, const char path, const char key, const char val)
	Set a string parameter in the parameter set handle.
int	GfParmSetNum (void handle, const char path, const char key, const char unit, tdble val)
	Set a numerical parameter in the parameter set handle.
int	GfParmSetNumEx (void handle, const char path, const char key, const char unit, tdble val, tdble min, tdble max)
	Set a numerical parameter and its bounds, creating it if necessary.
int	GfParmGetNumBoundaries (void handle, const char path, const char key, tdble min, tdble *max)
	Get the min and max of a numerical parameter from the parameter set handle.

Detailed Description

Handling of data in parameter sets.

Function Documentation

◆ GfParmGetName()

char * GfParmGetName ( void * handle )

Get the name property of the parameter set handle.

Parameters

[in] handle parameter set handle

Returns: Borrowed name; do not modify or free it despite the char* return type.
NULL if failed or not set

Note: The pointer returned is for immediate use, if you plan to keep the value for a long time, it is necessary to copy the string, because manipulating the handle will produce an incoherent pointer.

Definition at line 2192 of file params.cpp.

Here is the call graph for this function:

◆ GfParmGetNum()

tdble GfParmGetNum	(	void *	handle,
		const char *	path,
		const char *	key,
		const char *	unit,
		tdble	deflt )

Get a numerical parameter from the parameter set handle.

If the parameter does not exist the given default value is returned without unit conversion.

Parameters

[in]	handle	parameter set handle
[in]	path	path of the parameter
[in]	key	parameter key name
[in]	unit	unit to convert the result to (NULL if SI is desired)
[in]	deflt	Fallback value already expressed in the requested unit.

Returns: Converted numeric value, or deflt unchanged if missing or not numeric.

Definition at line 2534 of file params.cpp.

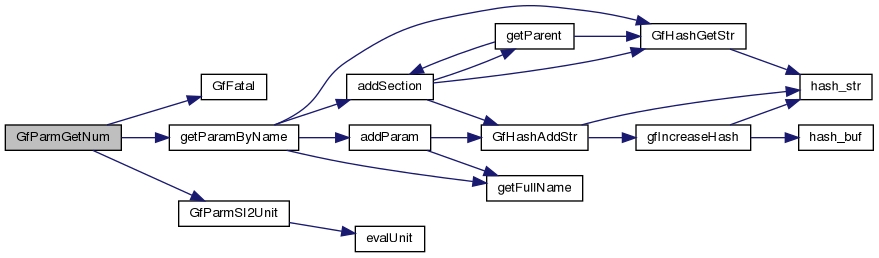

Here is the call graph for this function:

◆ GfParmGetNumBoundaries()

int GfParmGetNumBoundaries	(	void *	handle,
		const char *	path,
		const char *	key,
		tdble *	min,
		tdble *	max )

Get the min and max of a numerical parameter from the parameter set handle.

Parameters

[in]	handle	parameter set handle
[in]	path	path of the parameter
[in]	key	parameter key name
[out]	min	Non-NULL destination for the minimum in SI units.
[out]	max	Non-NULL destination for the maximum in SI units.

Returns: 0 Ok
-1 if the parameter is missing or not numeric; both outputs remain unchanged.

Definition at line 3268 of file params.cpp.

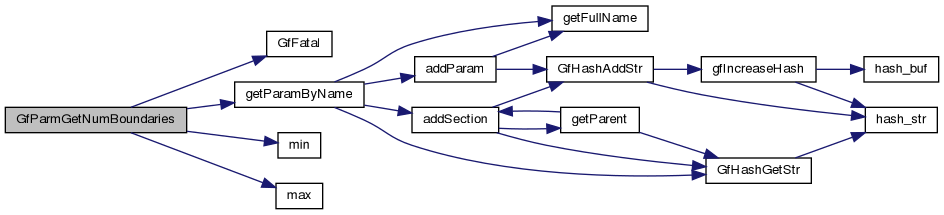

Here is the call graph for this function:

◆ GfParmGetStr()

const char * GfParmGetStr	(	void *	parmHandle,
		const char *	path,
		const char *	key,
		const char *	deflt )

Get a string parameter from the parameter set handle.

If the parameter does not yet exist the given default is returned.

Parameters

[in]	parmHandle	parameter set handle
[in]	path	path of the parameter
[in]	key	parameter key name
[in]	deflt	Borrowed fallback string, possibly NULL.

Returns: Borrowed parameter value, or deflt if missing, empty or not a string. No allocation or ownership transfer occurs; do not free the result.

Note: The pointer returned is for immediate use, if you plan to keep the value for a long time, it is necessary to copy the string, because removing the attribute will produce an incoherent pointer.

Definition at line 2453 of file params.cpp.

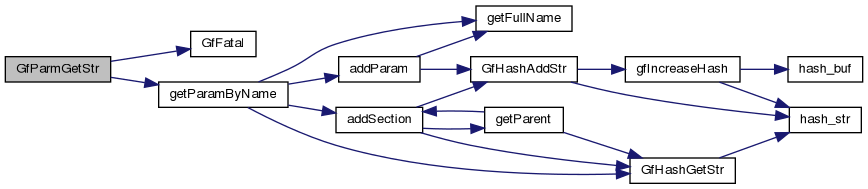

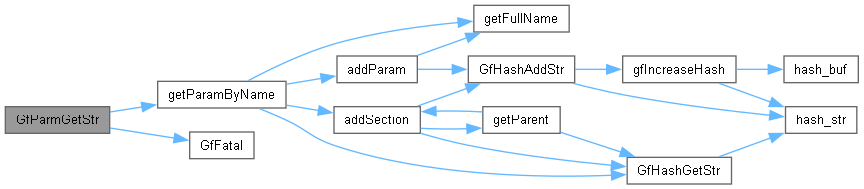

Here is the call graph for this function:

◆ GfParmRemove()

void GfParmRemove	(	void *	parmHandle,
		char *	sectionName,
		char *	paramName )

Remove a parameter from a parameter set.

Not declared in the public tgf.h API. Public callers can remove an attribute with GfParmSetStr(handle, path, key, NULL), including a numeric attribute.

Parameters

[in,out]	parmHandle	Parameter set to modify.
[in]	sectionName	Section path.
[in]	paramName	Parameter name. Empty sections and their empty ancestors are pruned after removal (also when the attribute was already absent).

Definition at line 1829 of file params.cpp.

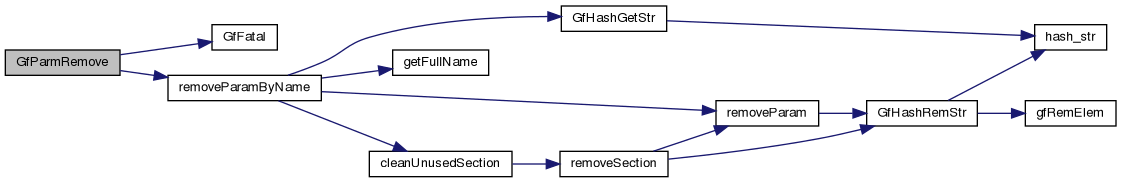

Here is the call graph for this function:

◆ GfParmSetNum()

int GfParmSetNum	(	void *	handle,
		const char *	path,
		const char *	key,
		const char *	unit,
		tdble	val )

Set a numerical parameter in the parameter set handle.

If the parameter does not yet exist it is created. The value is assigned to the value, min and max.

Parameters

[in,out]	handle	parameter set handle
[in]	path	path of the parameter
[in]	key	parameter key name
[in]	unit	Unit of the supplied value (NULL or empty for SI); copied for later serialization. The value is converted to SI for storage.
[in]	val	value to set

Returns: 0 ok
-11 if the parameter could not be created; -1 for a reported bad handle.

Definition at line 2737 of file params.cpp.

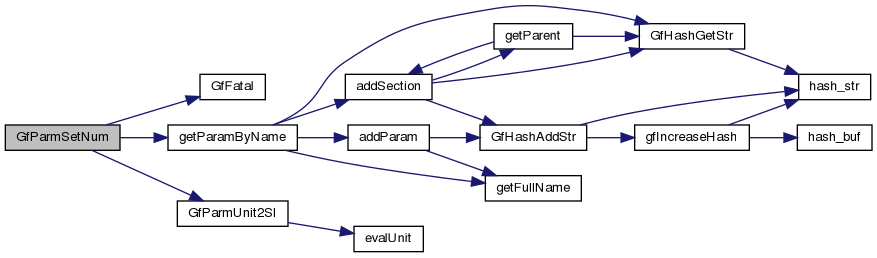

Here is the call graph for this function:

◆ GfParmSetNumEx()

int GfParmSetNumEx	(	void *	handle,
		const char *	path,
		const char *	key,
		const char *	unit,
		tdble	val,
		tdble	min,
		tdble	max )

Set a numerical parameter and its bounds, creating it if necessary.

Replaces the existing type, value and bounds. Does not validate min <= max or clamp val into that range; callers must supply consistent values.

Parameters

[in,out]	handle	parameter set handle
[in]	path	path of the parameter
[in]	key	parameter key name
[in]	unit	Unit of val, min and max (NULL or empty for SI). All three are converted to SI; a copy of the unit is retained for serialization.
[in]	val	value to set
[in]	min	min value to set
[in]	max	max value to set

Returns: 0 ok
-1 error

Definition at line 2783 of file params.cpp.

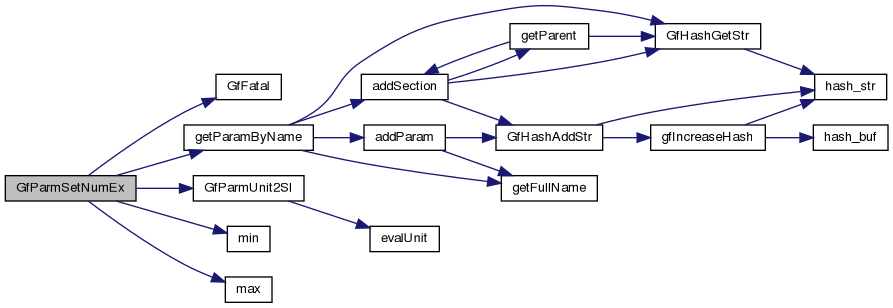

Here is the call graph for this function:

◆ GfParmSetStr()

int GfParmSetStr	(	void *	handle,
		const char *	path,
		const char *	key,
		const char *	val )

Set a string parameter in the parameter set handle.

Creates missing sections and the attribute, or replaces its value/type. Copies val; the string's within constraint is not checked. NULL or empty val removes the attribute and prunes empty sections/ancestors instead. Copy a borrowed value before passing it back to a setter for the same attribute, which frees the old storage first.

Parameters

[in,out]	handle	parameter set handle
[in]	path	path of the parameter
[in]	key	parameter key name
[in]	val	String to copy (NULL or empty to remove the attribute).

Returns: 0 ok
-1 error

Definition at line 2623 of file params.cpp.

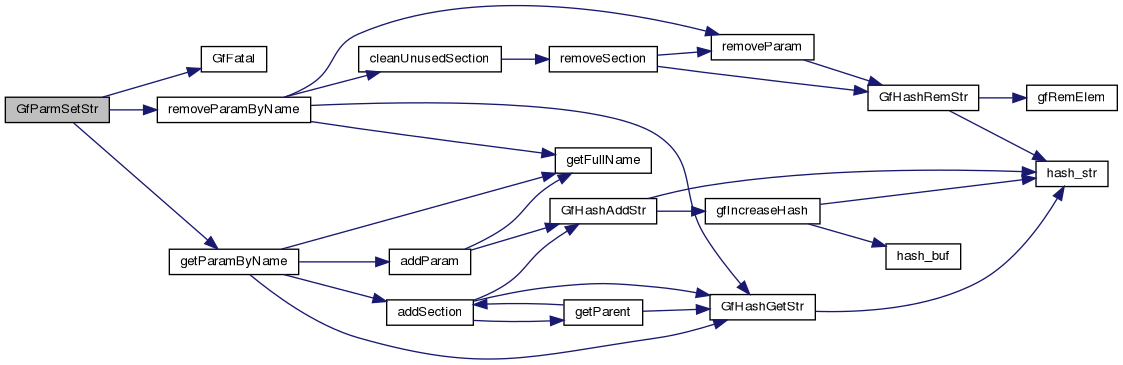

Here is the call graph for this function:

◆ GfParmSI2Unit()

tdble GfParmSI2Unit	(	const char *	unit,
		tdble	val )

Convert a value from SI to given unit.

Parameters

[in]	unit	Unit expression to convert to; NULL or empty leaves val unchanged.
[in]	val	value in SI units to be converted to unit

Returns: converted value in unit

See also: GfParmUnit2SI

Definition at line 2133 of file params.cpp.

Here is the call graph for this function:

◆ GfParmUnit2SI()

tdble GfParmUnit2SI	(	const char *	unit,
		tdble	val )

Convert a value given in unit to SI.

The units can be combined with "/", "." and "2" (square), e.g. "lbf/in", "N.m", "kg.m/s2". After the first slash, all remaining factors are denominator factors, including those separated by dots. There is no dimensional validation: unknown tokens have conversion factor 1.

Parameters

[in]	unit	Unit expression for val; NULL or empty leaves val unchanged. Tokens are case-sensitive except for explicitly listed aliases and must fit in the internal 256-byte token buffer, including its terminator.
[in]	val	value in unit

Returns: the value converted to SI

Note

The supported units are:

feet or ft converted to m
inches,inch or in converted to m
km converted to m
cm converted to m
mm converted to m
lbs or lb converted to kg
mph or MPH converted to m/s
slug or slugs converted to kg
h,hour or hours converted to s
day or days converted to s
kPa or MPa converted to Pa
PSI or psi converted to Pa
deg converted to rad
rpm or RPM converted to rad/s
percent or % divided by 100
lbf converted to N

See also: GfParmSI2Unit

Definition at line 2079 of file params.cpp.

Here is the call graph for this function:
