Track segment (tTrackSeg) The segments can be straights (type TR_STR): (the track goes from the right to the left) More...

#include <track.h>

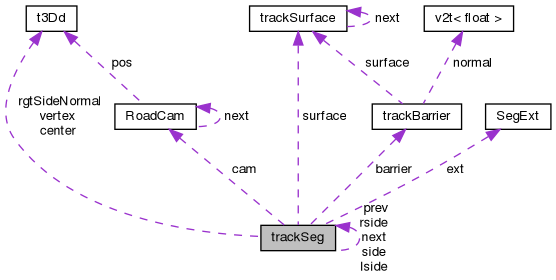

Collaboration diagram for trackSeg:

[legend]

Public Attributes
const char *	name
	Segment name. More...

int	id
	Segment number. More...

int	type
	Geometrical type: More...

int	type2
	Position type: More...

int	style
	Border and barrier segments style: More...

tdble	length
	Length in meters of the middle of the track. More...

tdble	width
	Width of the segment (if constant width) More...

tdble	startWidth
	Width of the beginning of the segment. More...

tdble	endWidth
	Width of the end of the segment. More...

tdble	lgfromstart
	Length of beginning of segment from starting line. More...

tdble	radius
	Radius in meters of the middle of the track (>0) More...

tdble	radiusr
	Radius in meters of the right side of the track (>0) More...

tdble	radiusl
	Radius in meters of the left side of the track (>0) More...

tdble	arc
	Arc in rad of the curve (>0) More...

t3Dd	center
	Center of the curve. More...

t3Dd	vertex [4]
	Coordinates of the 4 corners of the segment. More...

tdble	angle [7]

tdble	Kzl

tdble	Kzw

tdble	Kyl

t3Dd	rgtSideNormal

int	envIndex

tdble	height
	Max height for curbs. More...

unsigned int	raceInfo
	Type of segment regarding the race: Mask value in: More...

tdble	DoVfactor

tSegExt *	ext

tTrackSurface *	surface
	Segment surface. More...

tTrackBarrier *	barrier [2]
	Segment barriers. More...

tRoadCam *	cam

struct trackSeg *	next
	Next segment. More...

struct trackSeg *	prev
	Previous segment. More...

union {
struct {
struct trackSeg * rside

struct trackSeg * lside

}

struct trackSeg * side [2]

};

Detailed Description

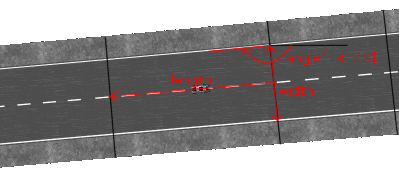

Track segment (tTrackSeg) The segments can be straights (type TR_STR): (the track goes from the right to the left)

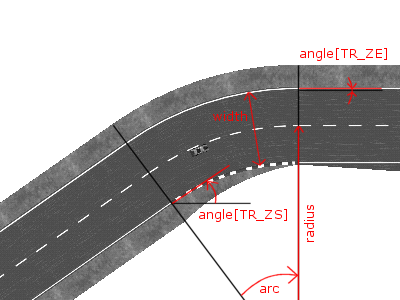

Or can be turn segments (type TR_RGT or TR_LFT): (the track goes from the left to the right)

The reference angle is the orientation of the first segment of the track.

Definition at line 276 of file track.h.

Member Data Documentation

◆ @21

union { ... }

◆ angle

tdble trackSeg::angle[7]

Definition at line 337 of file track.h.

◆ arc

tdble trackSeg::arc

Arc in rad of the curve (>0)

Definition at line 323 of file track.h.

◆ barrier

tTrackBarrier* trackSeg::barrier[2]

Segment barriers.

Definition at line 395 of file track.h.

◆ cam

tRoadCam* trackSeg::cam

Definition at line 396 of file track.h.

◆ center

t3Dd trackSeg::center

Center of the curve.

Definition at line 324 of file track.h.

◆ DoVfactor

tdble trackSeg::DoVfactor

Definition at line 387 of file track.h.

◆ endWidth

tdble trackSeg::endWidth

Width of the end of the segment.

Definition at line 318 of file track.h.

◆ envIndex

int trackSeg::envIndex

Definition at line 361 of file track.h.

◆ ext

tSegExt* trackSeg::ext

Definition at line 392 of file track.h.

◆ height

tdble trackSeg::height

Max height for curbs.

Definition at line 363 of file track.h.

◆ id

int trackSeg::id

Segment number.

Definition at line 278 of file track.h.

◆ Kyl

tdble trackSeg::Kyl

Definition at line 359 of file track.h.

◆ Kzl

tdble trackSeg::Kzl

Definition at line 356 of file track.h.

◆ Kzw

tdble trackSeg::Kzw

Definition at line 357 of file track.h.

◆ length

tdble trackSeg::length

Length in meters of the middle of the track.

Definition at line 315 of file track.h.

◆ lgfromstart

tdble trackSeg::lgfromstart

Length of beginning of segment from starting line.

Definition at line 319 of file track.h.

◆ lside

struct trackSeg * trackSeg::lside

Definition at line 406 of file track.h.

◆ name

const char* trackSeg::name

Segment name.

Definition at line 277 of file track.h.

◆ next

struct trackSeg* trackSeg::next

Next segment.

Definition at line 397 of file track.h.

◆ prev

struct trackSeg* trackSeg::prev

Previous segment.

Definition at line 398 of file track.h.

◆ raceInfo

unsigned int trackSeg::raceInfo

Type of segment regarding the race:
Mask value in:

TR_NORMAL
TR_LAST
TR_START
TR_PITLANE
TR_SPEEDLIMIT
TR_PITENTRY
TR_PITEXIT
TR_PIT

Definition at line 365 of file track.h.

◆ radius

tdble trackSeg::radius

Radius in meters of the middle of the track (>0)

Definition at line 320 of file track.h.

◆ radiusl

tdble trackSeg::radiusl

Radius in meters of the left side of the track (>0)

Definition at line 322 of file track.h.

◆ radiusr

tdble trackSeg::radiusr

Radius in meters of the right side of the track (>0)

Definition at line 321 of file track.h.

◆ rgtSideNormal

t3Dd trackSeg::rgtSideNormal

Definition at line 360 of file track.h.

◆ rside

struct trackSeg* trackSeg::rside

Definition at line 406 of file track.h.

◆ side

struct trackSeg* trackSeg::side[2]

Definition at line 407 of file track.h.

◆ startWidth

tdble trackSeg::startWidth

Width of the beginning of the segment.

Definition at line 317 of file track.h.

◆ style

int trackSeg::style

Border and barrier segments style:

TR_PLAN
TR_CURB
TR_WALL
TR_FENCE
TR_PITBUILDING

Definition at line 302 of file track.h.

◆ surface

tTrackSurface* trackSeg::surface

Segment surface.

Definition at line 394 of file track.h.

◆ type

int trackSeg::type

Geometrical type:

TR_RGT
TR_LFT
TR_STR

Definition at line 280 of file track.h.

◆ type2

int trackSeg::type2

Position type:

TR_MAIN
TR_LSIDE
TR_RSIDE
TR_LBORDER
TR_RBORDER

Definition at line 289 of file track.h.

◆ vertex

t3Dd trackSeg::vertex[4]

Coordinates of the 4 corners of the segment.

Index in:

TR_SL
TR_SL
TR_EL
TR_ER

Definition at line 325 of file track.h.

◆ width

tdble trackSeg::width

Width of the segment (if constant width)

Definition at line 316 of file track.h.

The documentation for this struct was generated from the following file:

src/interfaces/track.h
