Common functions for race managers. More...

Classes
struct	tRmTrackSelect
	Structure for track selection. More...

struct	tRmDrvSelect
	Structure for driver selection. More...

struct	tRmRaceParam
	Structure for configuring parameters. More...

struct	tRmFileSelect
	Structure for file selection. More...

Typedefs
typedef void(*	tfSelectFile) (char *)
	Callback function definition for handling file selection. More...

Functions
void *	RmCarSetupScreenInit (void prevMenu, tCarElt car, tRmInfo *reInfo)
	Display car setup screen, for loading, saving and changing car setups. More...

void	RmDriversSelect (void *vs)
	Drivers list selection, the race manager parameter set is handed over in vs, tRmDrvSelect.param. More...

void	RmFileSelect (void *vs)
	File selection. More...

void	RmLoadingScreenStart (const char title, const char bgimg)
	Set up loading screen. More...

void	RmShutdownLoadingScreen (void)
	Shut down loading screen. More...

void	RmLoadingScreenSetText (const char *text)
	Set a new line of text on the loading screen. More...

void *	RmTwoStateScreen (const char title, const char label1, const char tip1, void screen1, const char label2, const char tip2, void *screen2)
	Screen with 2 menu options (buttons) More...

void *	RmTriStateScreen (const char title, const char label1, const char tip1, void screen1, const char label2, const char tip2, void screen2, const char label3, const char tip3, void screen3)
	Screen with 3 menu options (buttons) More...

void *	RmFourStateScreen (const char title, const char label1, const char tip1, void screen1, const char label2, const char tip2, void screen2, const char label3, const char tip3, void screen3, const char label4, const char tip4, void *screen4)
	Screen with 4 menu options (buttons) More...

void *	RmNStateScreen (const char title, const char label, const char tip, void *screen, const int n)
	Screen with N menu options (buttons) More...

void	RmPitMenuStart (tCarElt car, tRmInfo reInfo, void *userdata, tfuiCallback callback)
	Pit menu. More...

void	RmRaceParamMenu (void *vrp)
	Race options menu. More...

void	RmShowResults (void prevHdle, tRmInfo info)
	Display results. More...

void	RmShowStandings (void prevHdle, tRmInfo info)
	Display standings. More...

char *	RmGetTrackName (char category, char trackName)
	Get the track name defined in the parameters. More...

char *	RmGetCategoryName (char *category)
	Get the track category name from the track category file. More...

void	RmTrackSelect (void *vs)
	Track selection, the race manager parameter set is handed over in vs, tRmTrackSelect.param. More...

Detailed Description

Common functions for race managers.

Typedef Documentation

◆ tfSelectFile

typedef void(* tfSelectFile) (char *)

Callback function definition for handling file selection.

Definition at line 70 of file racescreens.h.

Function Documentation

◆ RmCarSetupScreenInit()

void* RmCarSetupScreenInit	(	void *	prevMenu,
		tCarElt *	car,
		tRmInfo *	reInfo
	)

Display car setup screen, for loading, saving and changing car setups.

Parameters

[in]	prevMenu	Link to previous menu
[in,out]	car	Car to set up, changes go into tCarElt.pitcmd.setup, see tCarPitSetup
[in]	reInfo	Information to construct setup file name (track name, session type)

Returns: Handle to car setup screen

See also: tCarPitCmd; tCarPitSetup

Definition at line 325 of file carsetupscreen.cpp.

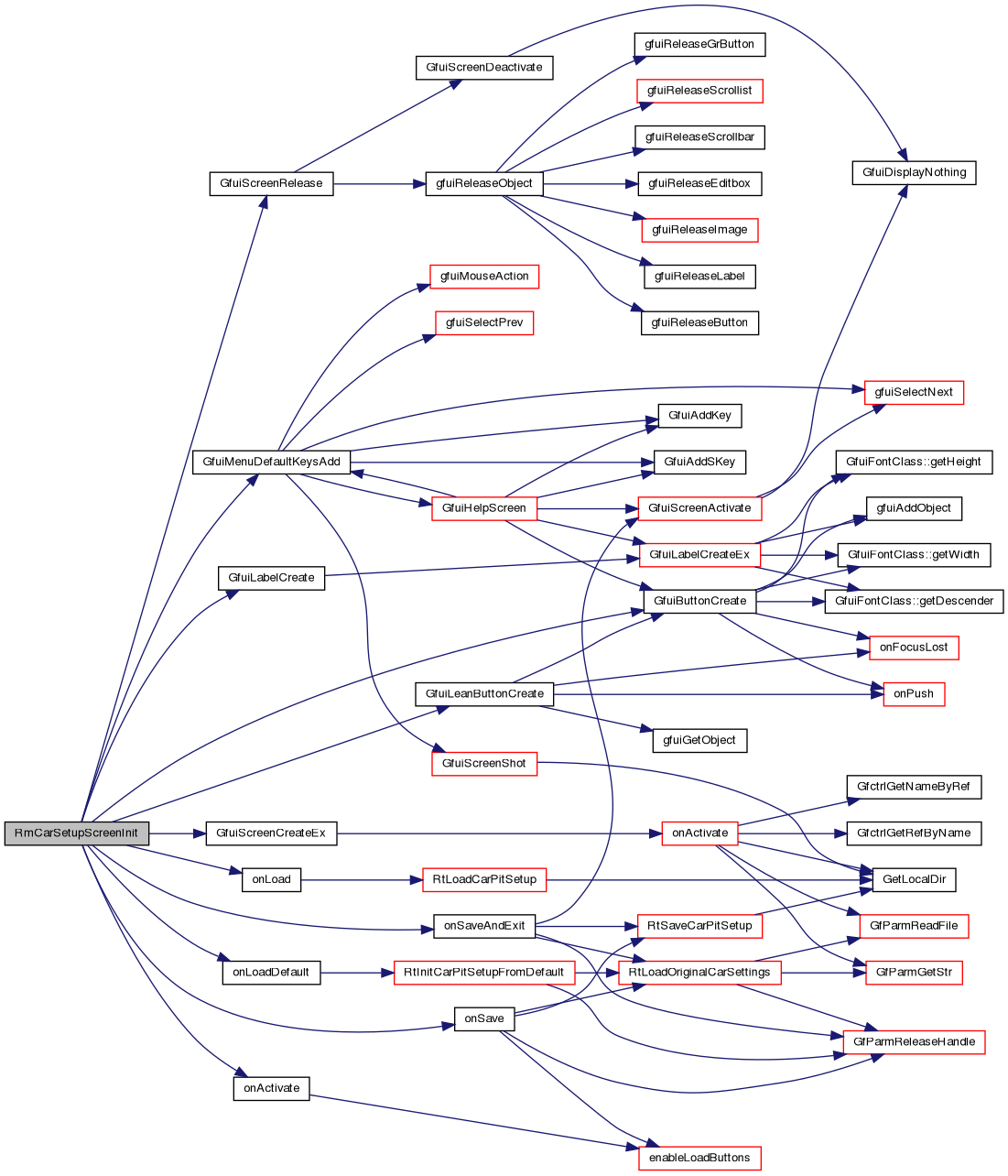

Here is the call graph for this function:

◆ RmDriversSelect()

void RmDriversSelect ( void * vs )

Drivers list selection, the race manager parameter set is handed over in vs, tRmDrvSelect.param.

Parameters

[in,out] vs Pointer on tRmDrvSelect structure (cast to void)

Note: The race manager parameter set is modified in memory but not persisted.

Definition at line 249 of file driverselect.cpp.

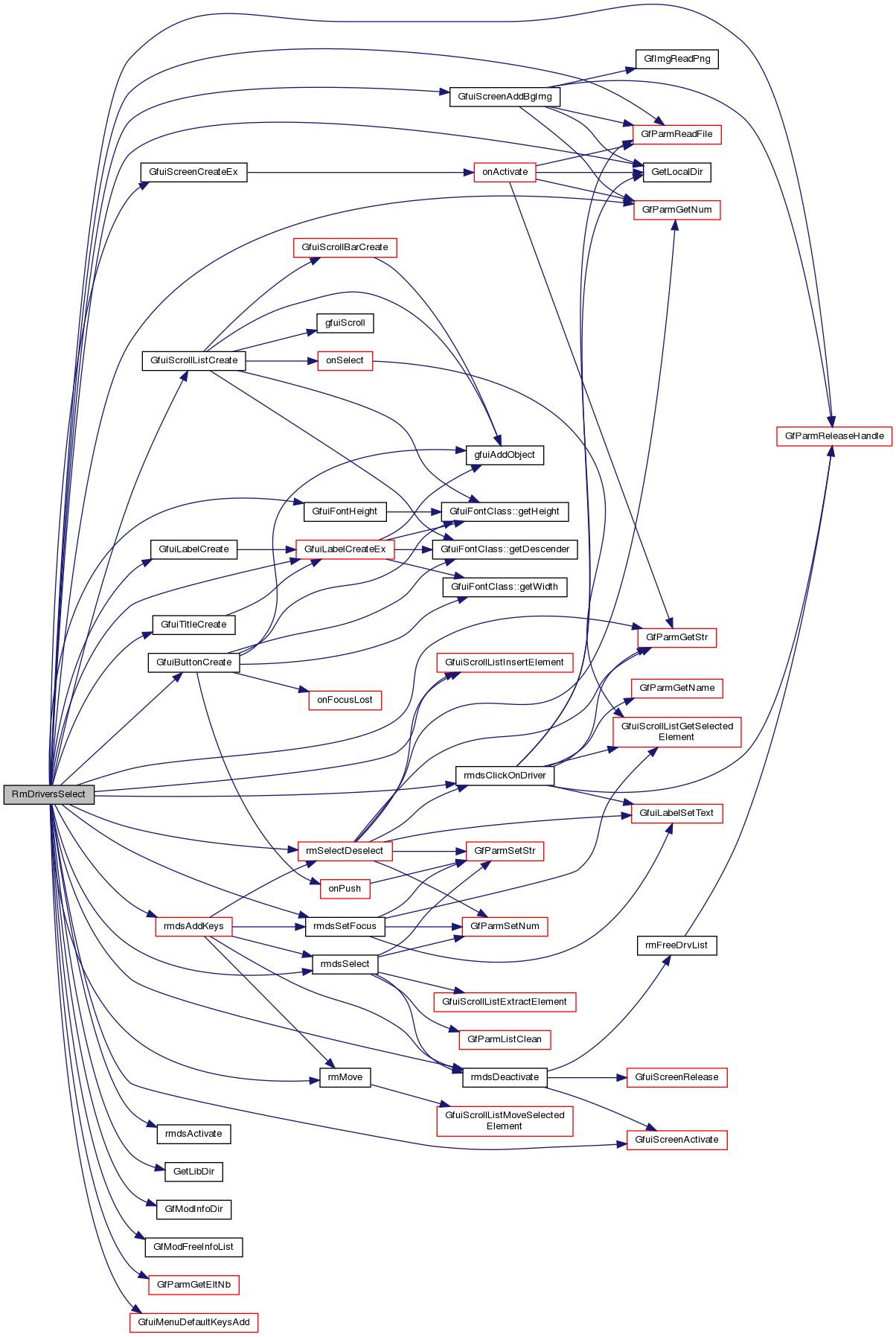

Here is the call graph for this function:

◆ RmFileSelect()

void RmFileSelect ( void * vs )

File selection.

The files listed are the ones contained in the directory given by the path in tRmFileSelect.path

Parameters

[in,out] vs Pointer on tRmFileSelect structure (cast to void)

Definition at line 81 of file fileselect.cpp.

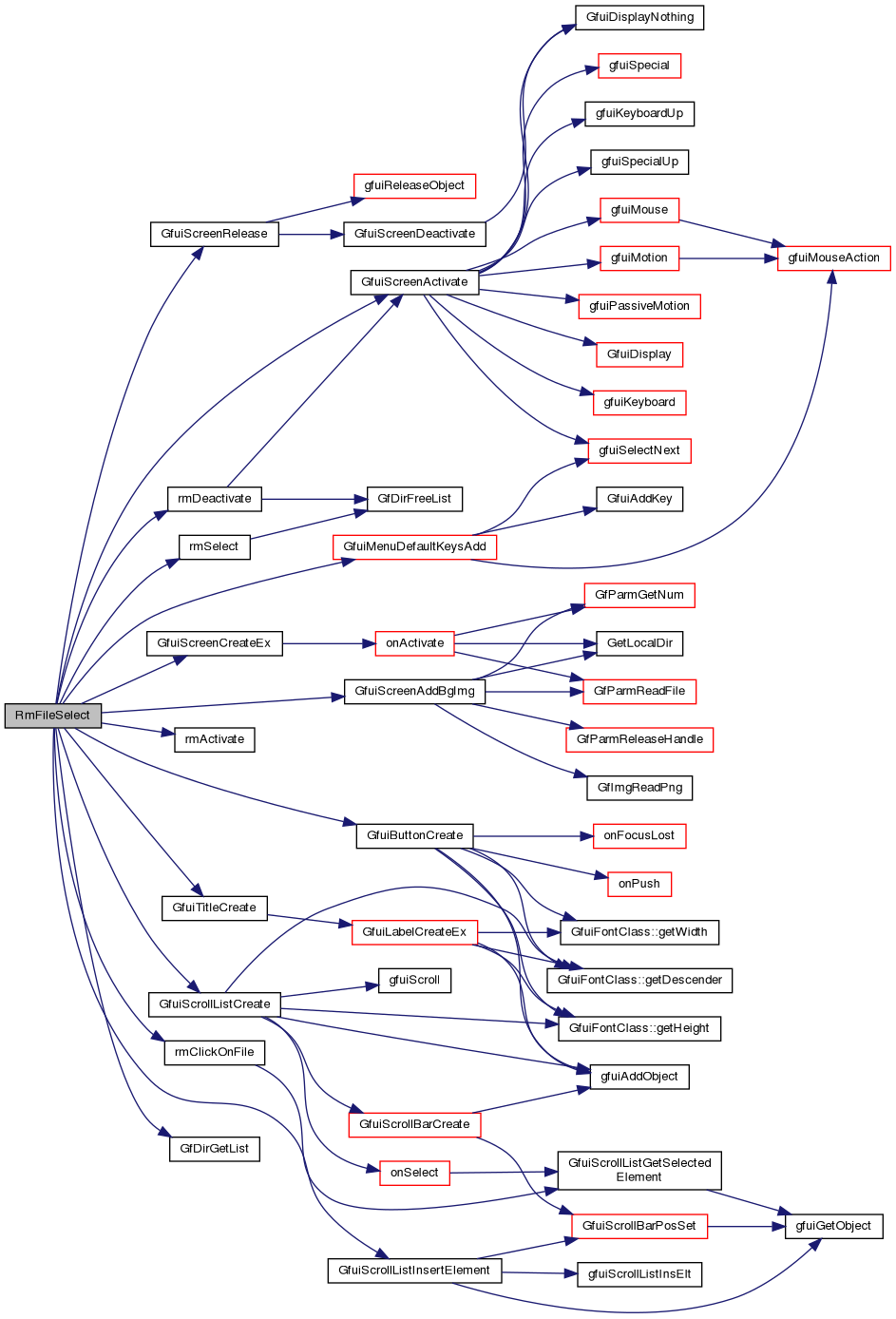

Here is the call graph for this function:

◆ RmFourStateScreen()

void* RmFourStateScreen	(	const char *	title,
		const char *	label1,
		const char *	tip1,
		void *	screen1,
		const char *	label2,
		const char *	tip2,
		void *	screen2,
		const char *	label3,
		const char *	tip3,
		void *	screen3,
		const char *	label4,
		const char *	tip4,
		void *	screen4
	)

Screen with 4 menu options (buttons)

Parameters

[in]	title	Title of the screen
[in]	label1	Button text for first option
[in]	tip1	Description for first option
[in]	screen1	Target screen to activate for first option
[in]	label2	Button text for second option
[in]	tip2	Description for second option
[in]	screen2	Target screen to activate for second option
[in]	label3	Button text for third option
[in]	tip3	Description for third option
[in]	screen3	Target screen to activate for third option
[in]	label4	Button text for fourth option
[in]	tip4	Description for fourth option
[in]	screen4	Target screen to activate for fourth option

Returns: Handle to screen

Definition at line 123 of file miscscreens.cpp.

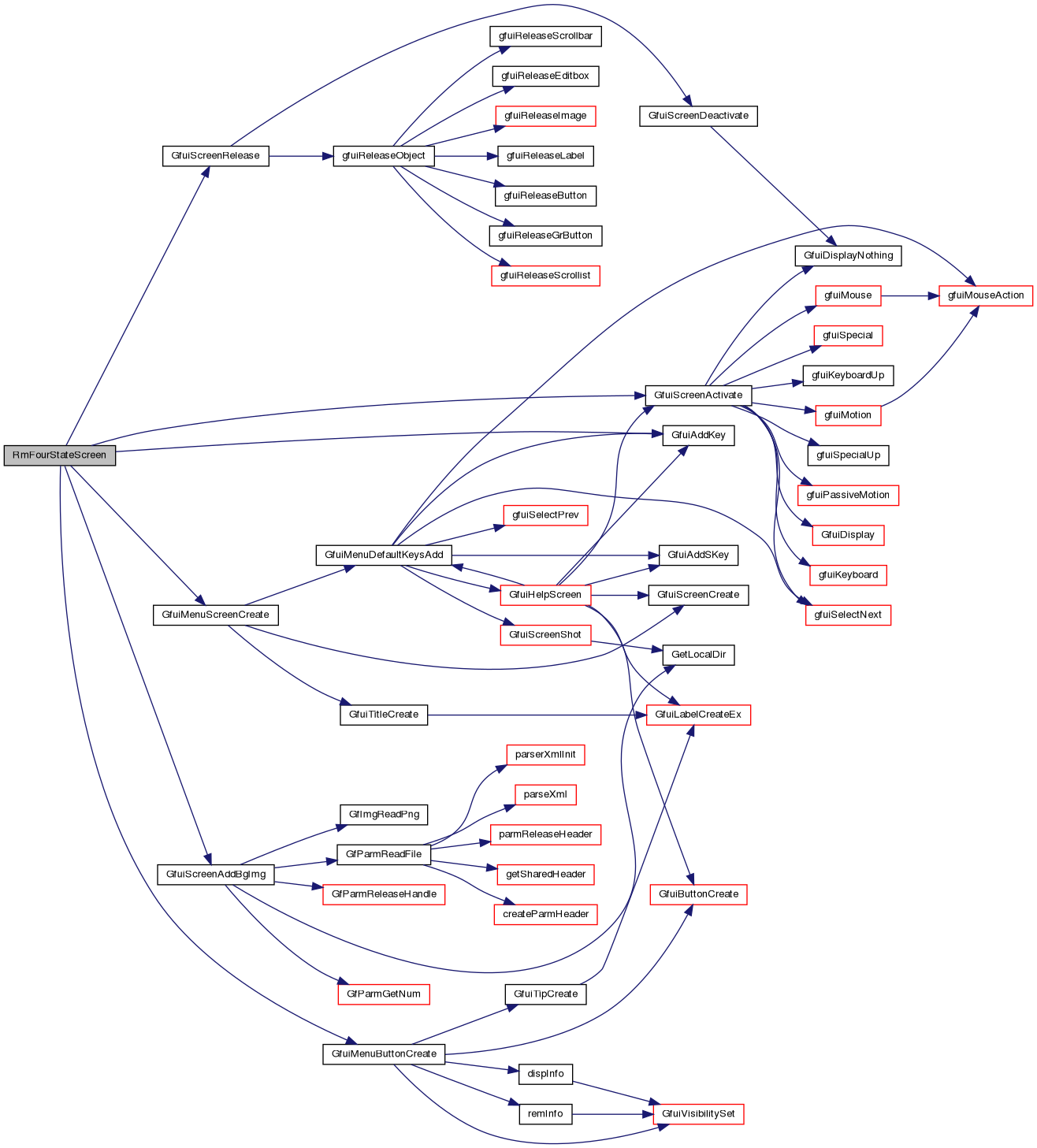

Here is the call graph for this function:

◆ RmGetCategoryName()

char* RmGetCategoryName ( char * category )

Get the track category name from the track category file.

Parameters

[in] category Track category file

Returns: Category display name on success
Empty string on failure

Note: The returned string is allocated on the heap and must be released by the caller at some point

Definition at line 223 of file trackselect.cpp.

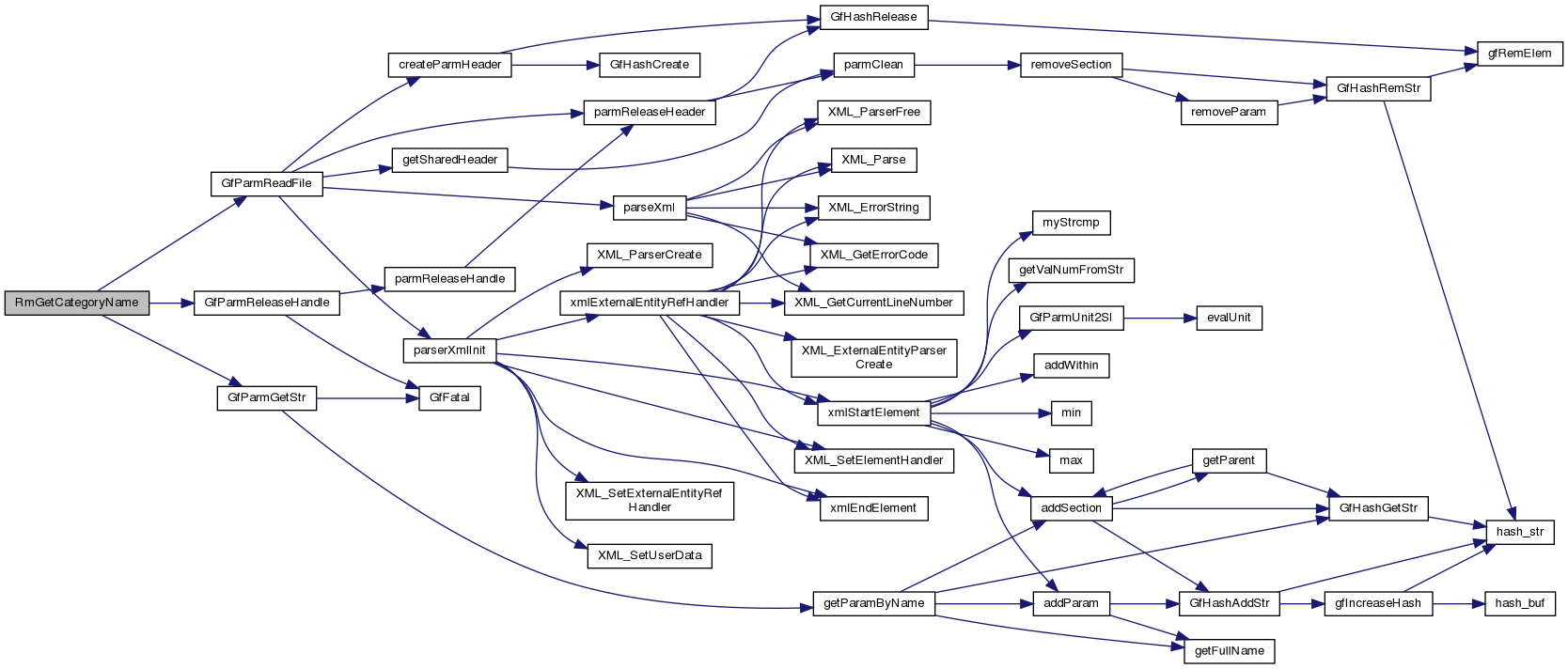

Here is the call graph for this function:

◆ RmGetTrackName()

char* RmGetTrackName	(	char *	category,
		char *	trackName
	)

Get the track name defined in the parameters.

Parameters

[in]	category	Track category directory
[in]	trackName	Track file name

Returns: Long track name on success
Empty string on failure

Note: The returned string is allocated on the heap and must be released by the caller at some point

Definition at line 194 of file trackselect.cpp.

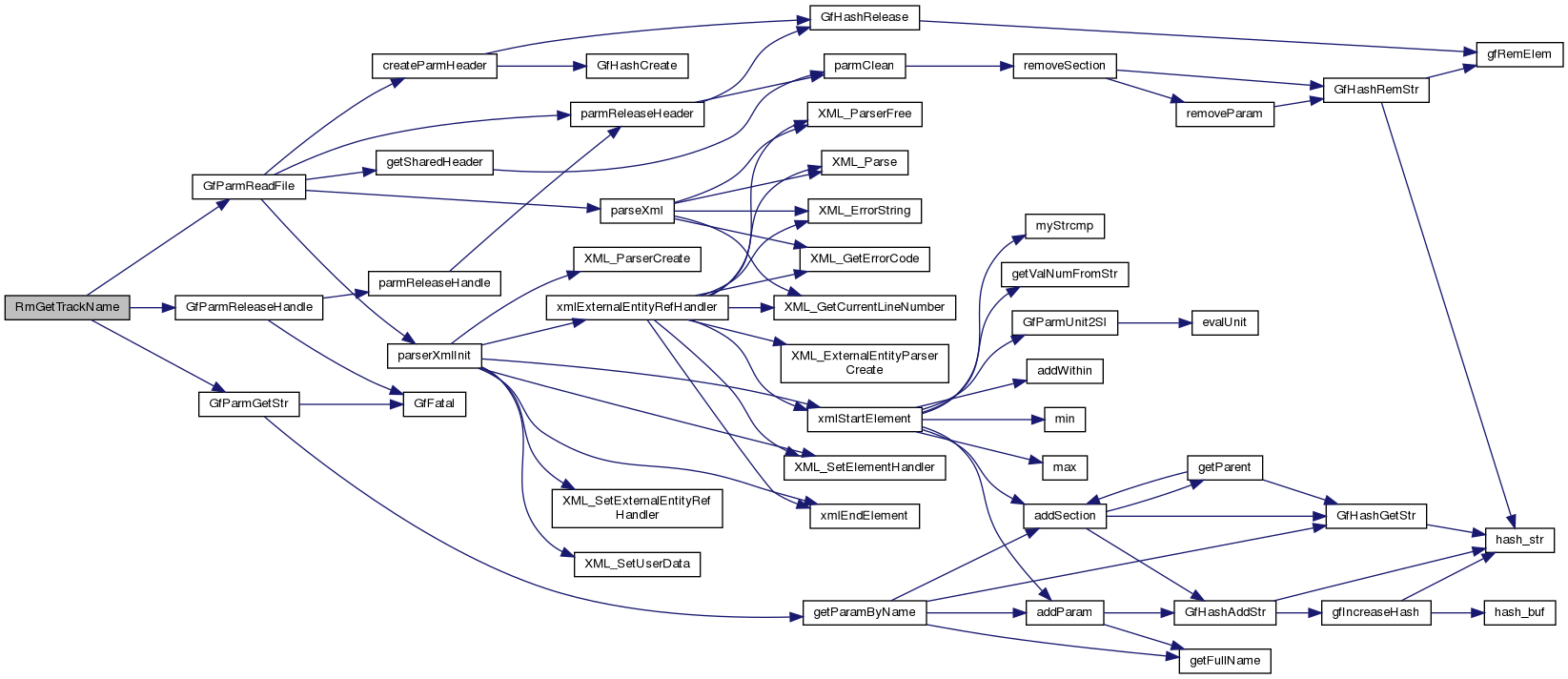

Here is the call graph for this function:

◆ RmLoadingScreenSetText()

void RmLoadingScreenSetText ( const char * text )

Set a new line of text on the loading screen.

Parameters

[in] text Text to display

Definition at line 112 of file loadingscreen.cpp.

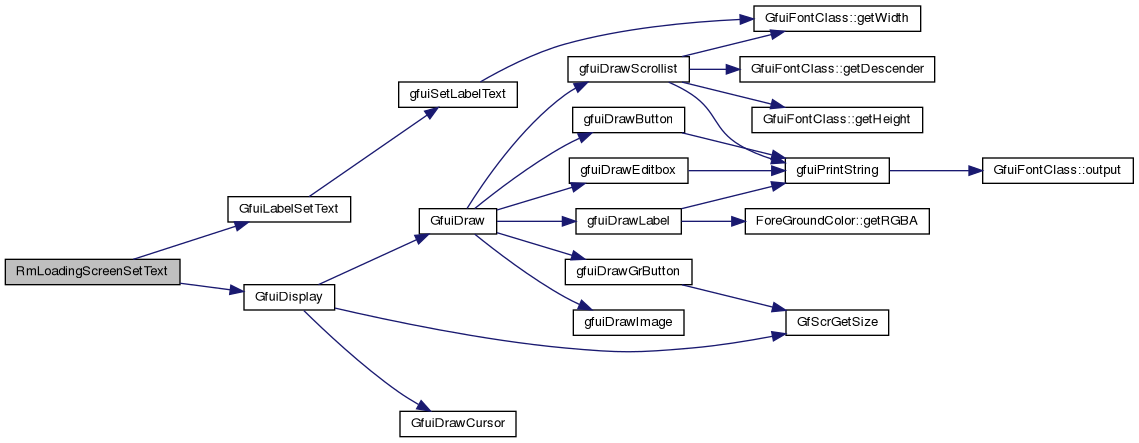

Here is the call graph for this function:

◆ RmLoadingScreenStart()

void RmLoadingScreenStart	(	const char *	title,
		const char *	bgimg
	)

Set up loading screen.

Parameters

title	Screen title.
bgimg	Optionnal backgrounf image (NULL for no img).

Definition at line 54 of file loadingscreen.cpp.

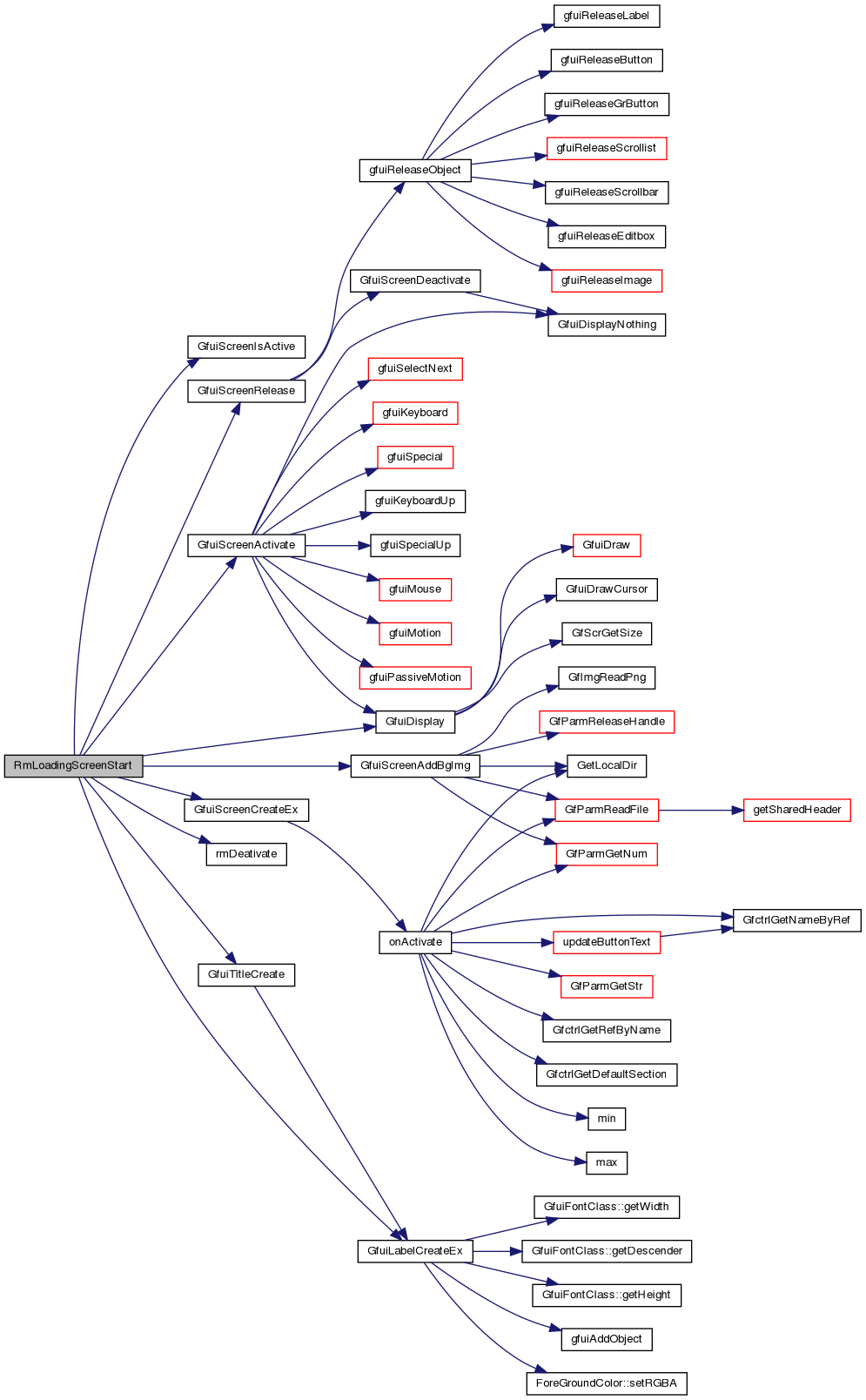

Here is the call graph for this function:

◆ RmNStateScreen()

void* RmNStateScreen	(	const char *	title,
		const char **	label,
		const char **	tip,
		void **	screen,
		const int	n
	)

Screen with N menu options (buttons)

Parameters

[in]	title	Title of the screen
[in]	label	Array of n button texts
[in]	tip	Array of n descriptions
[in]	screen	Array of n screens
[in]	n	Size of arrays

Returns: Handle to screen

Definition at line 156 of file miscscreens.cpp.

Here is the call graph for this function:

◆ RmPitMenuStart()

void RmPitMenuStart	(	tCarElt *	car,
		tRmInfo *	reInfo,
		void *	userdata,
		tfuiCallback	callback
	)

Pit menu.

Parameters

[in,out]	car	Car data is returned in tCarElt.pitcmd
[in]	reInfo	Required for passing data to car setup screen, RmCarSetupScreenInit
[in]	userdata	Userdata for callback
[in]	callback	Callback to take action on the changes made

Definition at line 129 of file pitmenu.cpp.

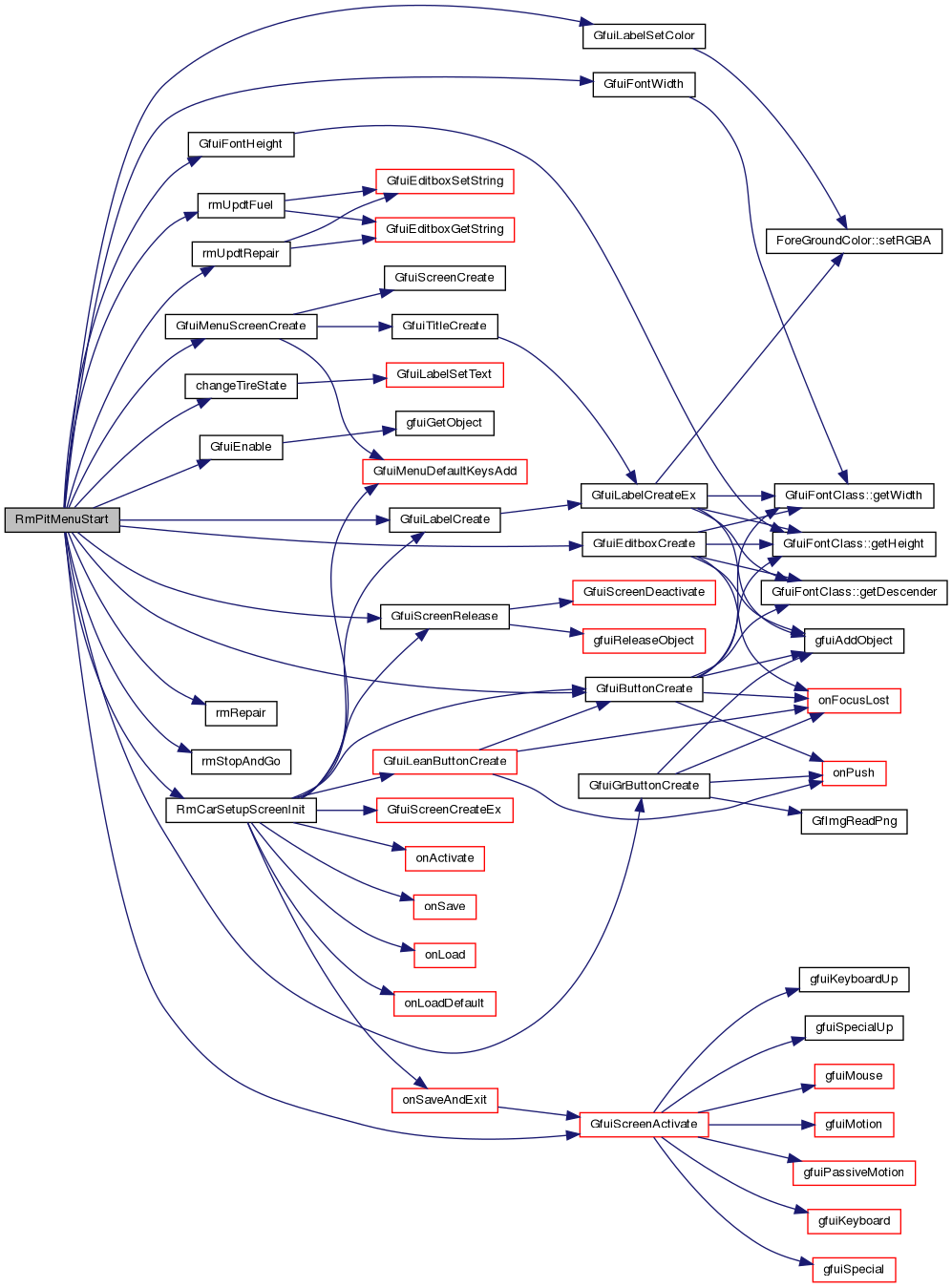

Here is the call graph for this function:

◆ RmRaceParamMenu()

void RmRaceParamMenu ( void * vrp )

Race options menu.

Parameters

[in,out] vrp Pointer on tRmRaceParam structure (cast to void)

Note: The race manager parameter set is modified in memory but not persisted.

Definition at line 136 of file racemenu.cpp.

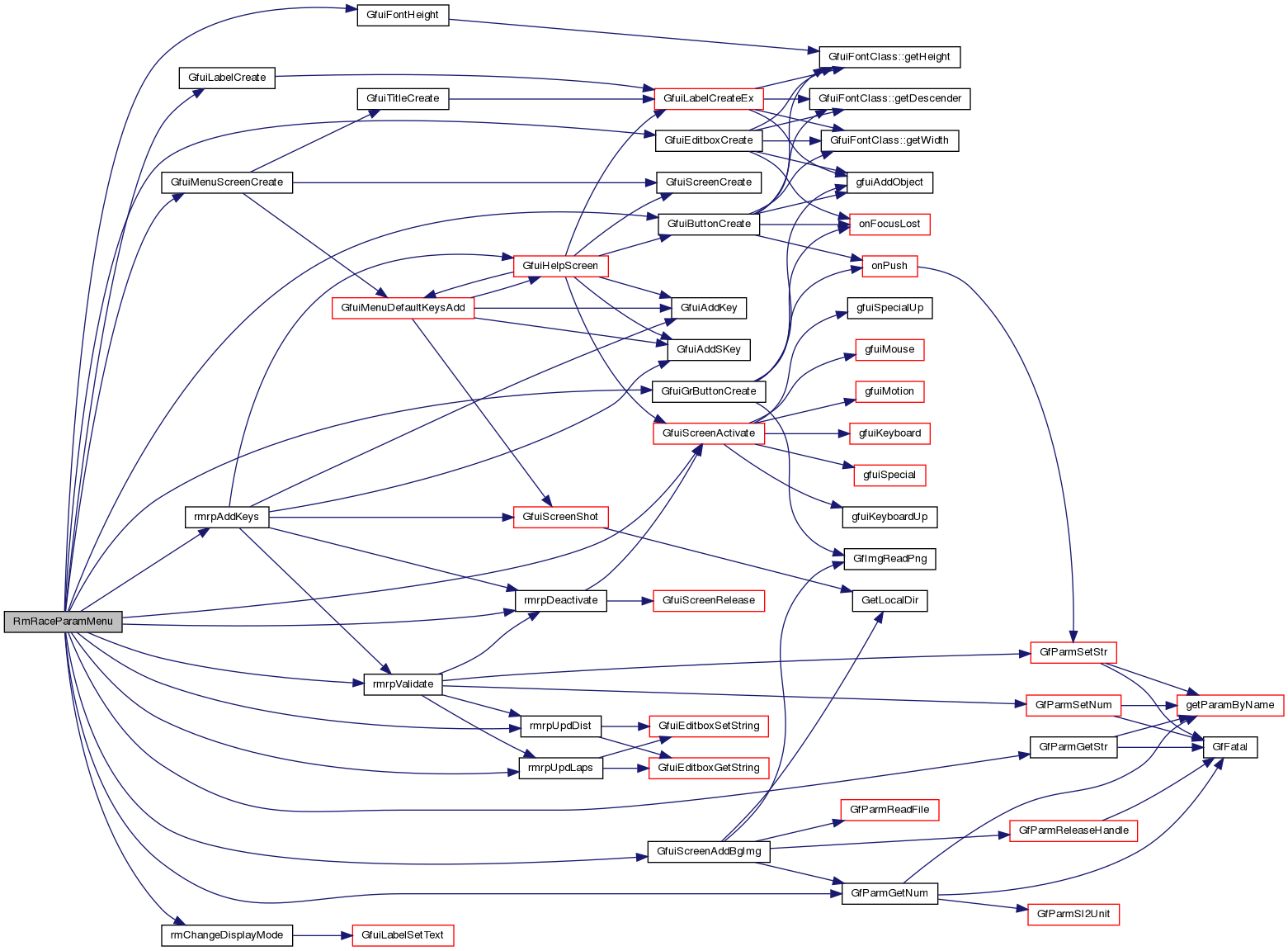

Here is the call graph for this function:

◆ RmShowResults()

void RmShowResults	(	void *	prevHdle,
		tRmInfo *	info
	)

Display results.

Parameters

[in]	prevHdle	Handle to previous result screen (used if the results require more than one screen)
[in]	info	tRmInfo.results carries the result parameter set handle

Definition at line 600 of file results.cpp.

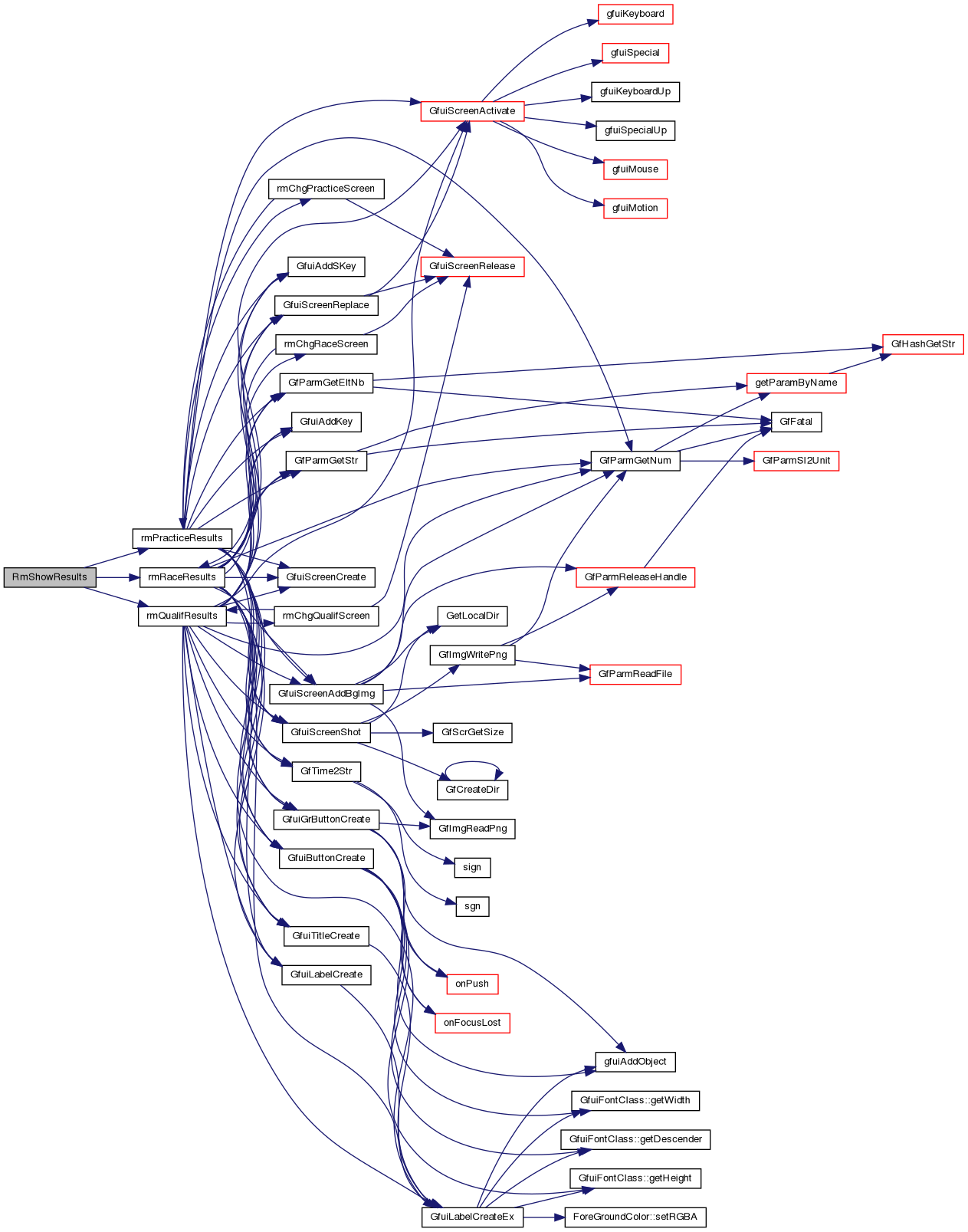

Here is the call graph for this function:

◆ RmShowStandings()

void RmShowStandings	(	void *	prevHdle,
		tRmInfo *	info
	)

Display standings.

Parameters

[in]	prevHdle	Handle to previous standings screen (used if the standings require more than one screen)
[in]	info	tRmInfo.results carries the result parameter set handle containing the standings

Definition at line 623 of file results.cpp.

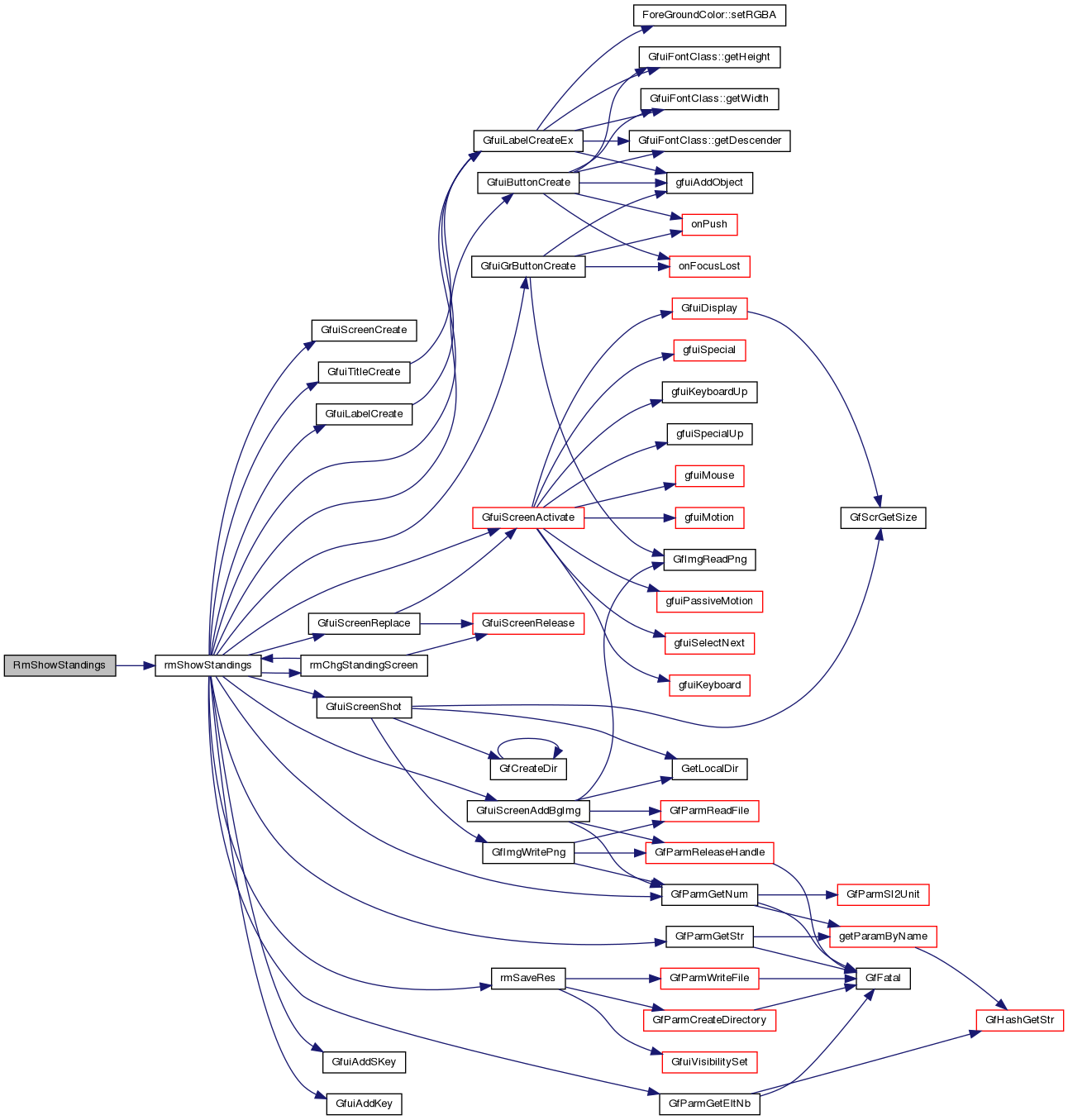

Here is the call graph for this function:

◆ RmShutdownLoadingScreen()

void RmShutdownLoadingScreen ( void )

Shut down loading screen.

Definition at line 98 of file loadingscreen.cpp.

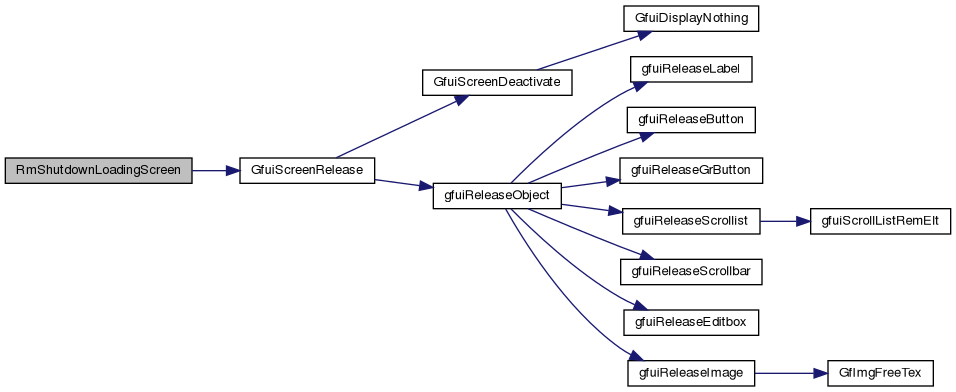

Here is the call graph for this function:

◆ RmTrackSelect()

void RmTrackSelect ( void * vs )

Track selection, the race manager parameter set is handed over in vs, tRmTrackSelect.param.

Parameters

[in,out] vs Pointer on a tRmTrackSelect structure (cast to void *)

Note: The race manager parameter set is modified in memory but not persisted.

Definition at line 250 of file trackselect.cpp.

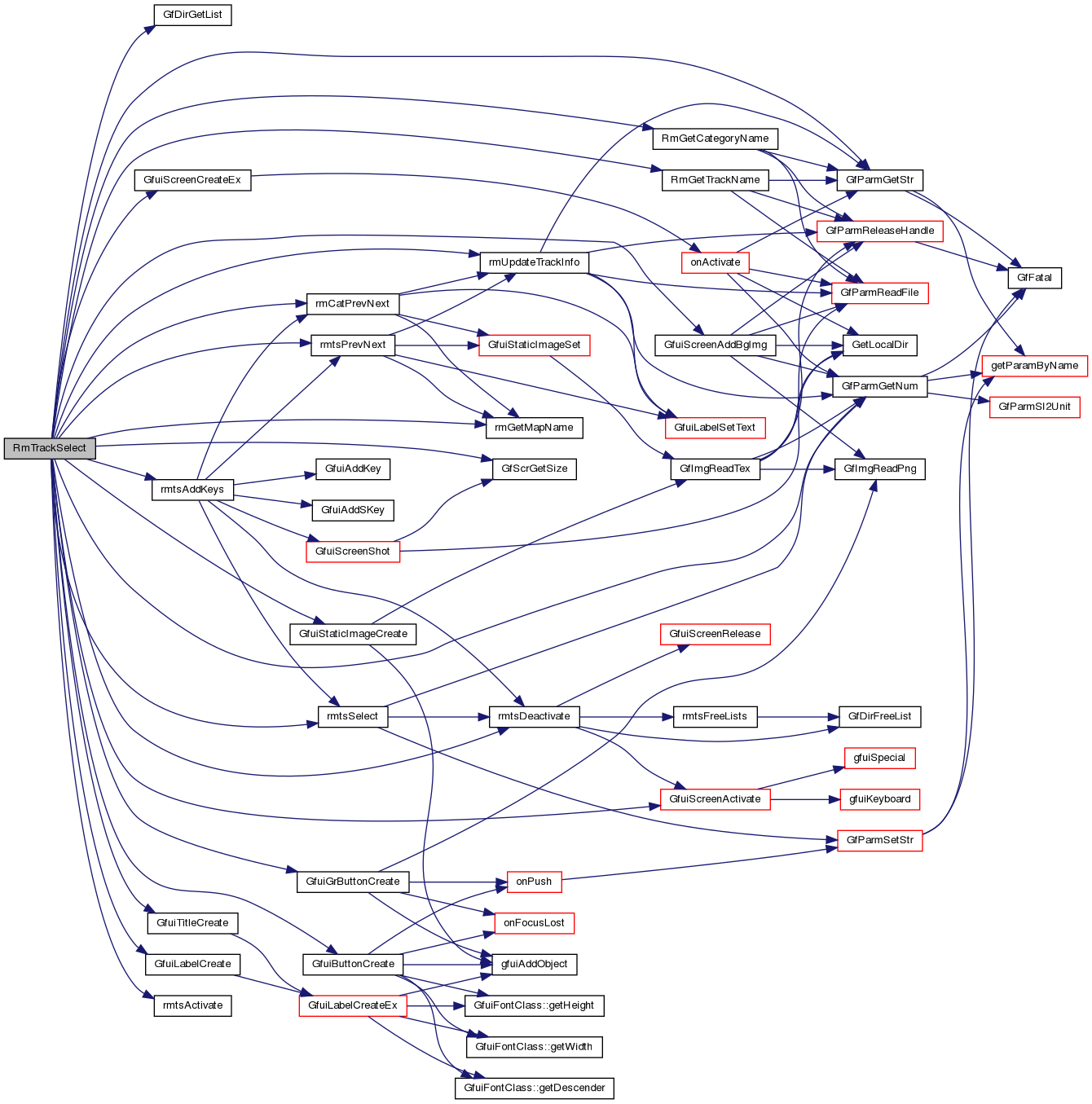

Here is the call graph for this function:

◆ RmTriStateScreen()

void* RmTriStateScreen	(	const char *	title,
		const char *	label1,
		const char *	tip1,
		void *	screen1,
		const char *	label2,
		const char *	tip2,
		void *	screen2,
		const char *	label3,
		const char *	tip3,
		void *	screen3
	)

Screen with 3 menu options (buttons)

Parameters

[in]	title	Title of the screen
[in]	label1	Button text for first option
[in]	tip1	Description for first option
[in]	screen1	Target screen to activate for first option
[in]	label2	Button text for second option
[in]	tip2	Description for second option
[in]	screen2	Target screen to activate for second option
[in]	label3	Button text for third option
[in]	tip3	Description for third option
[in]	screen3	Target screen to activate for third option

Returns: Handle to screen

Definition at line 84 of file miscscreens.cpp.

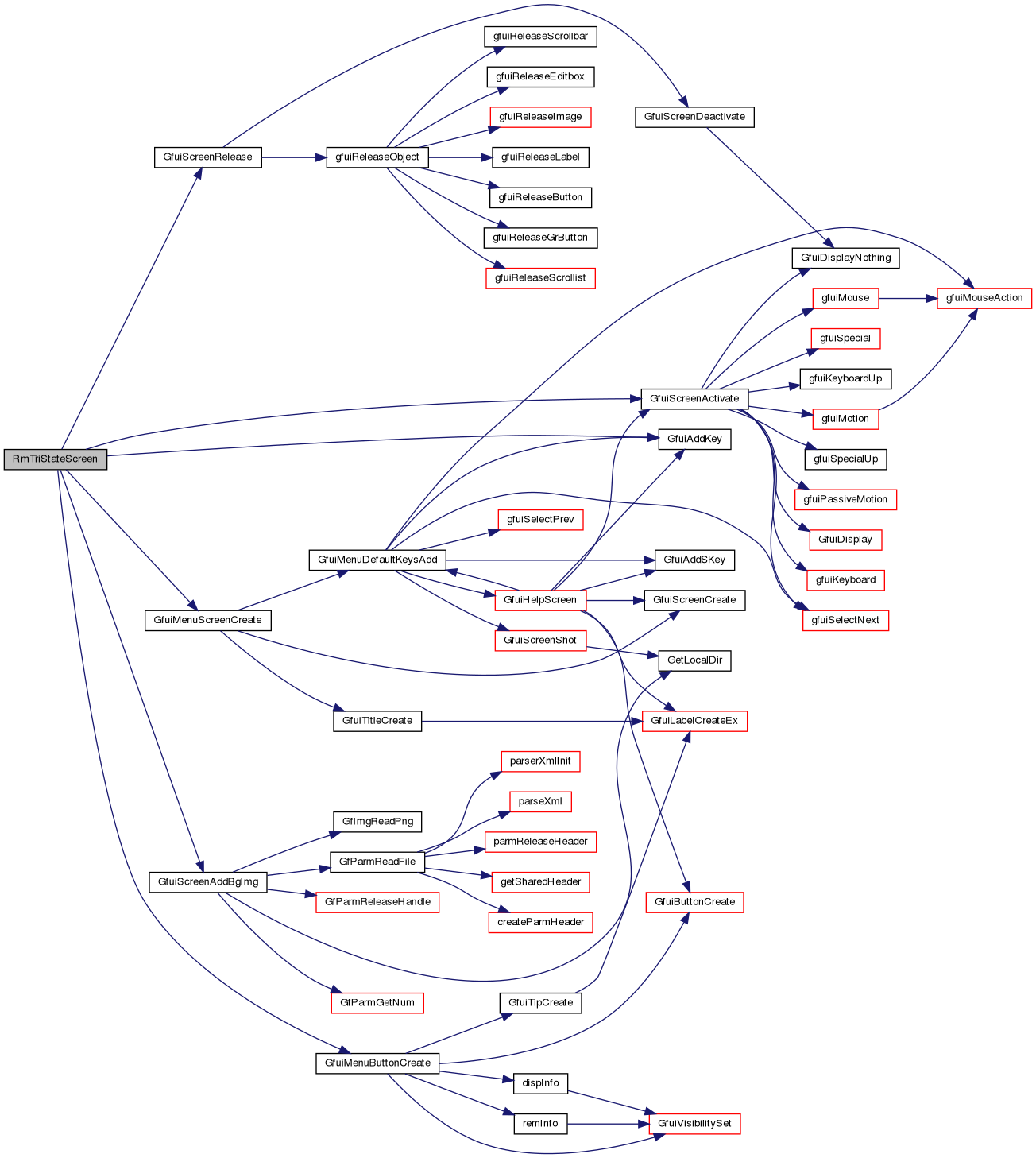

Here is the call graph for this function:

◆ RmTwoStateScreen()

void* RmTwoStateScreen	(	const char *	title,
		const char *	label1,
		const char *	tip1,
		void *	screen1,
		const char *	label2,
		const char *	tip2,
		void *	screen2
	)

Screen with 2 menu options (buttons)

Parameters

[in]	title	Title of the screen
[in]	label1	Button text for first option
[in]	tip1	Description for first option
[in]	screen1	Target screen to activate for first option
[in]	label2	Button text for second option
[in]	tip2	Description for second option
[in]	screen2	Target screen to activate for second option

Returns: Handle to screen

Definition at line 50 of file miscscreens.cpp.

Here is the call graph for this function:
