miscscreens.cpp File Reference

Common screens for race manager menus More...

#include <stdio.h>
#include <tgfclient.h>
#include <robot.h>
#include <racescreens.h>
#include <portability.h>

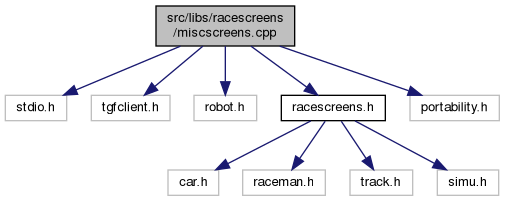

Include dependency graph for miscscreens.cpp:

Go to the source code of this file.

Classes
struct	tStartRaceCall

Macros
#define	MAX_LINES   20

Functions
void *	RmTwoStateScreen (const char *title, const char *label1, const char *tip1, void *screen1, const char *label2, const char *tip2, void *screen2)
	Screen with 2 menu options (buttons)
void *	RmTriStateScreen (const char *title, const char *label1, const char *tip1, void *screen1, const char *label2, const char *tip2, void *screen2, const char *label3, const char *tip3, void *screen3)
	Screen with 3 menu options (buttons)
void *	RmFourStateScreen (const char *title, const char *label1, const char *tip1, void *screen1, const char *label2, const char *tip2, void *screen2, const char *label3, const char *tip3, void *screen3, const char *label4, const char *tip4, void *screen4)
	Screen with 4 menu options (buttons)
void *	RmNStateScreen (const char *title, const char **label, const char **tip, void **screen, const int n)
	Screen with N menu options (buttons)
static void	rmDisplayStartRace (tRmInfo *info, void *startScr, void *abortScr, int start)
static void	rmChgStartScreen (tStartRaceCall *psrc)
void	RmDisplayStartRace (tRmInfo *info, void *startScr, void *abortScr)

Variables
static void *	twoStateHdle = 0
static void *	triStateHdle = 0
static void *	fourStateHdle = 0
static void *	nStateHandle = 0
static tStartRaceCall	nextStartRace
static tStartRaceCall	prevStartRace
static void *	rmScrHdle = 0

Detailed Description

Common screens for race manager menus

Author

bernhard Wymann, Eric Espie

Definition in file miscscreens.cpp.

Macro Definition Documentation

MAX_LINES

#define MAX_LINES   20

Definition at line 187 of file miscscreens.cpp.

Function Documentation

rmChgStartScreen()

void rmChgStartScreen ( tStartRaceCall * psrc )

static

Definition at line 203 of file miscscreens.cpp.

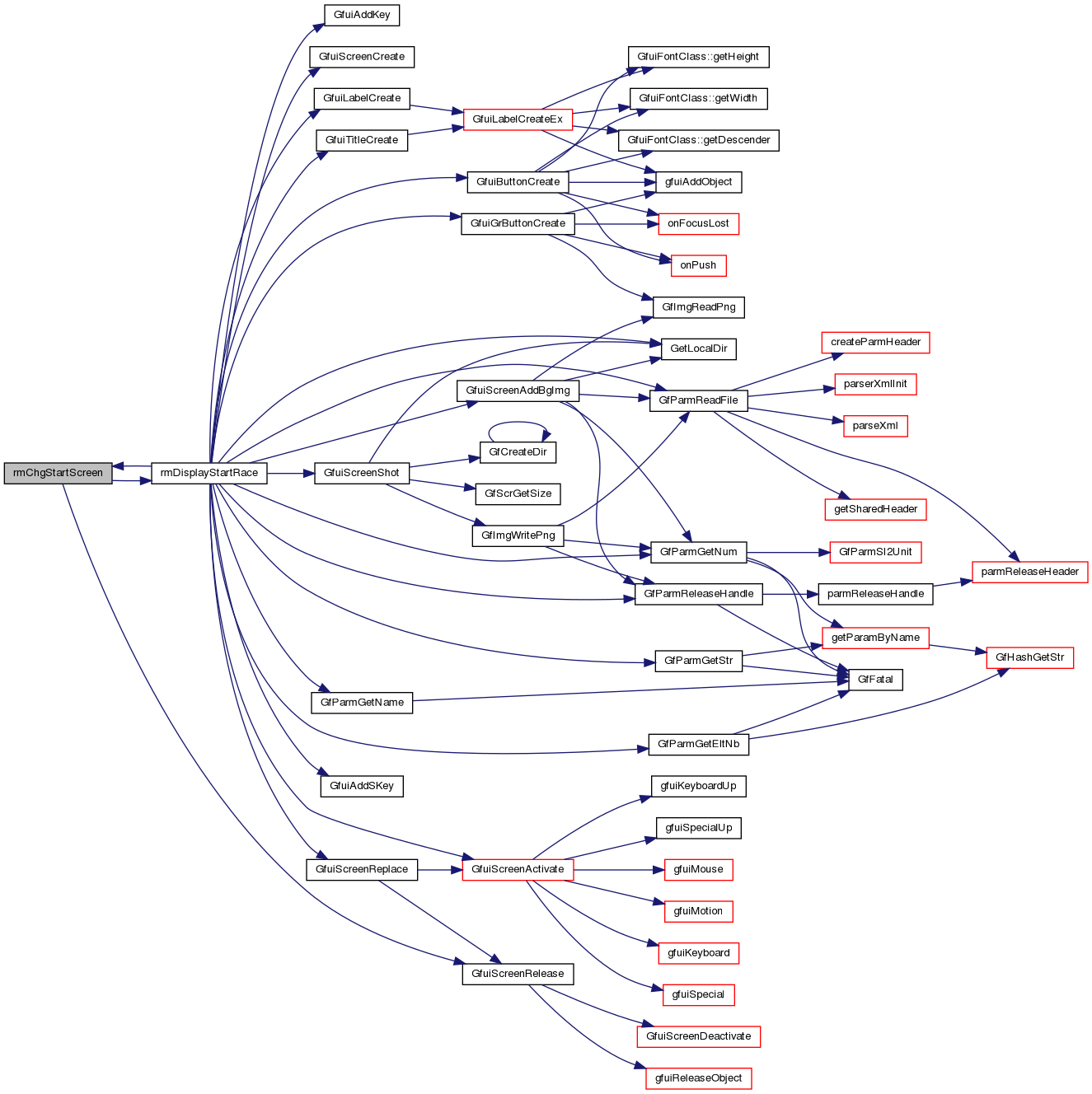

Here is the call graph for this function:

RmDisplayStartRace()

void RmDisplayStartRace	(	tRmInfo *	info,
		void *	startScr,
		void *	abortScr )

Definition at line 338 of file miscscreens.cpp.

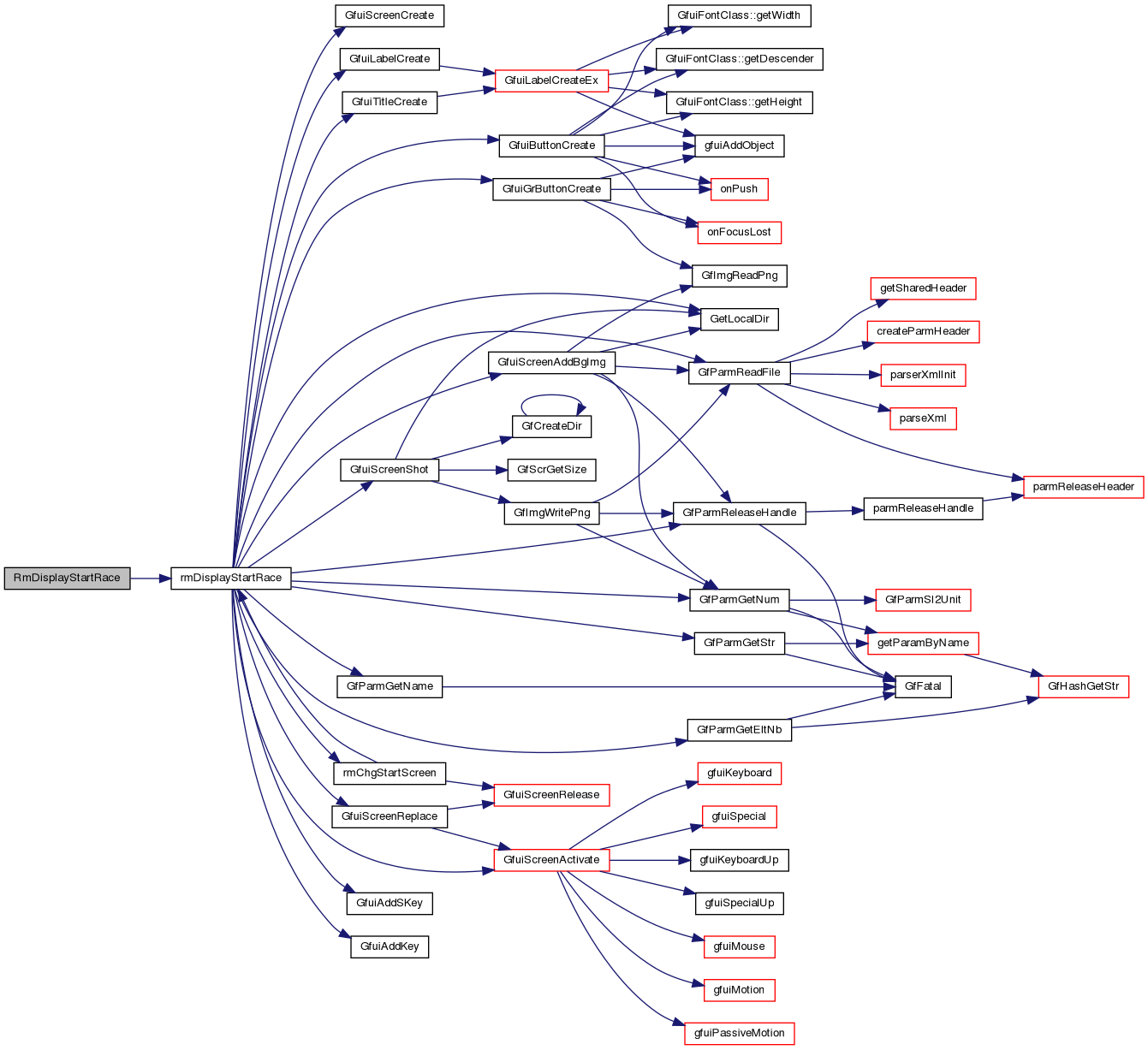

Here is the call graph for this function:

rmDisplayStartRace()

void rmDisplayStartRace ( tRmInfo * info, void * startScr, void * abortScr, int start )

static

Definition at line 212 of file miscscreens.cpp.

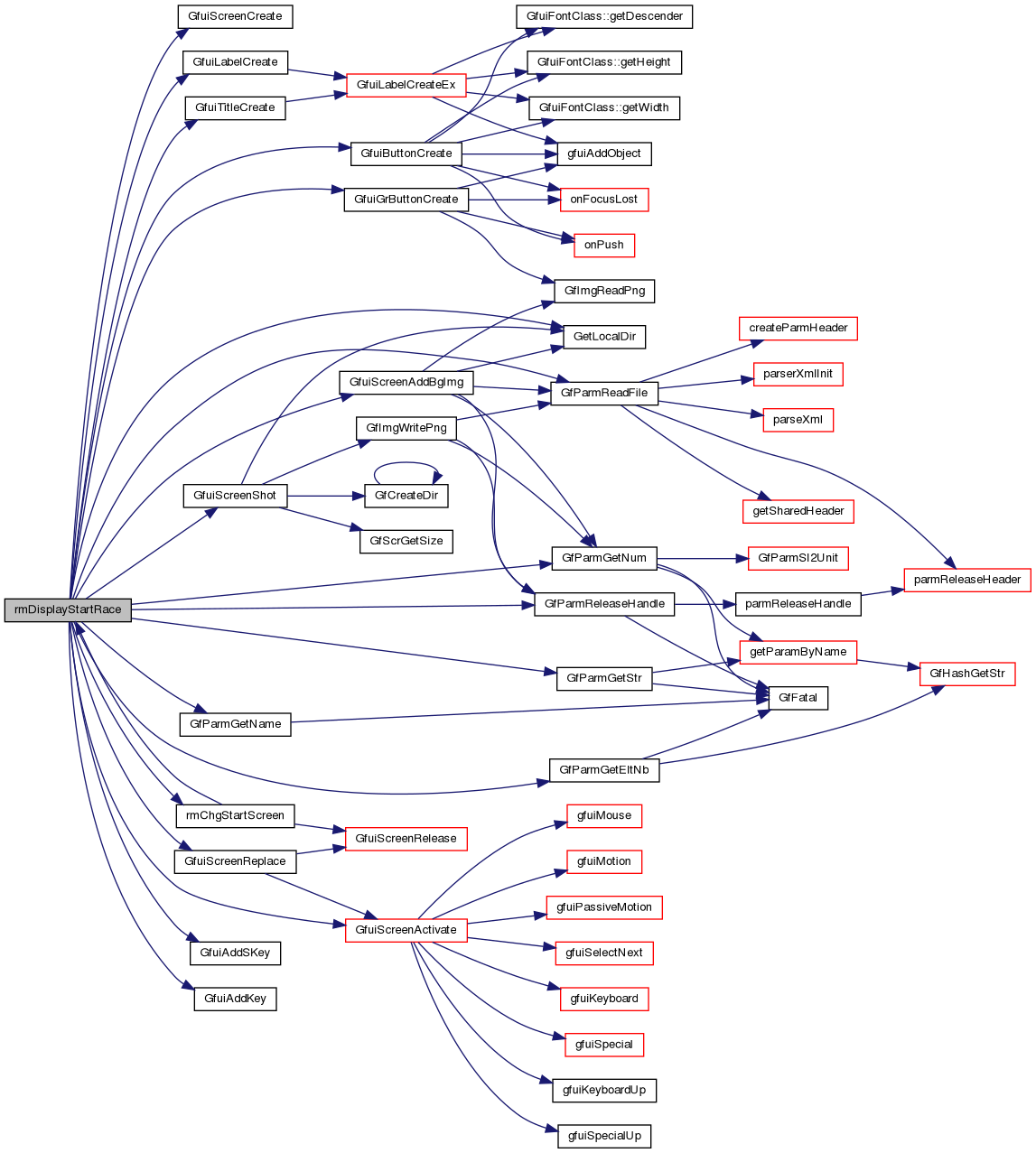

Here is the call graph for this function:

Variable Documentation

fourStateHdle

void* fourStateHdle = 0

static

Definition at line 33 of file miscscreens.cpp.

nextStartRace

tStartRaceCall nextStartRace

static

Definition at line 197 of file miscscreens.cpp.

nStateHandle

void* nStateHandle = 0

static

Definition at line 34 of file miscscreens.cpp.

prevStartRace

tStartRaceCall prevStartRace

static

Definition at line 197 of file miscscreens.cpp.

rmScrHdle

void* rmScrHdle = 0

static

Definition at line 198 of file miscscreens.cpp.

triStateHdle

void* triStateHdle = 0

static

Definition at line 32 of file miscscreens.cpp.

twoStateHdle

void* twoStateHdle = 0

static

Definition at line 31 of file miscscreens.cpp.
