Internal (not exported) helper functions, not part of the API. More...

Collaboration diagram for Parameter Helper Functions:

Functions
static char *	getFullName (const char sectionName, const char paramName)
	Helper function to get the full name of a parameter (full name: "sectionName/paramName"). More...

static struct param *	getParamByName (struct parmHeader conf, const char sectionName, const char *paramName, int flag)
	Helper function to get (or create) a parameter by name. More...

static void	removeParamByName (struct parmHeader conf, const char sectionName, const char *paramName)

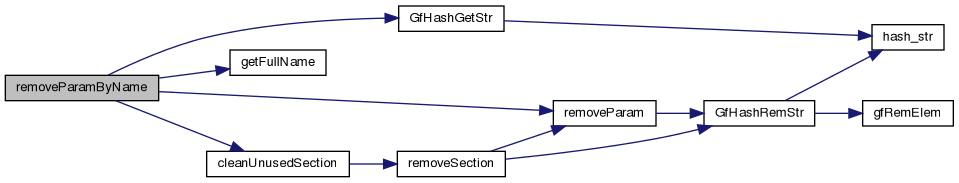

	Helper function to remove a parameter with given name paramName. More...

static void	cleanUnusedSection (struct parmHeader conf, struct section section)
	Helper function to clean up unused (empty) sections starting with given section. More...

static void	removeParam (struct parmHeader conf, struct section section, struct param *param)
	Helper function to remove given parameter. More...

static struct param *	addParam (struct parmHeader conf, struct section section, const char paramName, const char value)
	Helper function to add parameter, does not check for duplicated name. More...

static void	removeSection (struct parmHeader conf, struct section section)
	Helper function to remove a section and its contents (subsections, elements). More...

static struct section *	getParent (struct parmHeader conf, const char sectionName)
	Helper function to get (or create if not found) parent section of section given in sectionName. More...

static struct section *	addSection (struct parmHeader conf, const char sectionName)
	Helper function to add a section to a parameter set. More...

static struct parmHeader *	getSharedHeader (const char *file, int mode)
	Helper function for looking up parameter sets in the cache. More...

static struct parmHeader *	createParmHeader (const char *file)
	Helper function to create header for parameter set handle. More...

static void	addWithin (struct param curParam, char s1)
	Helper function to add "within" options to parameter curParam. More...

static tdble	getValNumFromStr (const char *str)
	Helper function to parse number. More...

static void	xmlStartElement (void userData, const char name, const char **atts)

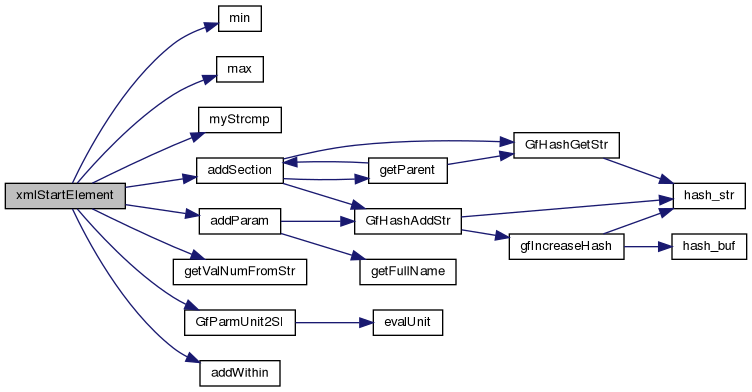

	Helper function to process opening XML elements. More...

static void	xmlEndElement (void userData, const XML_Char name)
	Helper function to process closing XML elements. More...

static int	xmlExternalEntityRefHandler (XML_Parser mainparser, const XML_Char openEntityNames, const XML_Char base, const XML_Char systemId, const XML_Char publicId)

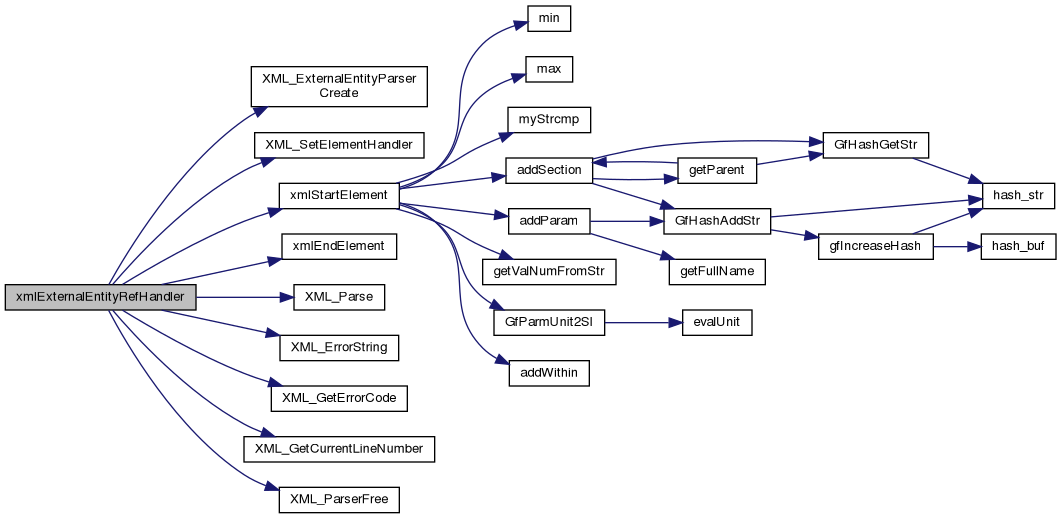

	Helper function to handle external XML entities (XML referencing over multiple files/URI's). More...

static int	parseXml (struct parmHandle parmHandle, char buf, int len, int done)
	Helper function to parse one line of XML. More...

static int	parserXmlInit (struct parmHandle *parmHandle)
	Helper function to set up XML parser in parmHandle. More...

static char *	handleEntities (char buf, const int BUFSIZE, const char val)
	Helper function to convert the input line given in val into proper XML notation, the output goes into buf. More...

static void	createIndent (char *buf, const int BUFSIZE, const int blanks)
	Helper function for indentation in the XML. More...

static void	createIn (char buf, const int BUFSIZE, withinHead head)
	Helper function to support the serialization into the XML of the "within" attribute. More...

static int	xmlGetOuputLine (struct parmHandle parmHandle, char buffer, int size)
	Helper function to output one line of XML generated from the given parameter set. More...

static void	parmClean (struct parmHeader *conf)
	Helper function to release the parameter set content. More...

static void	parmReleaseHeader (struct parmHeader *conf)
	Helper function to release the parameter set if the reference counter is 0. More...

static void	parmReleaseHandle (struct parmHandle *parmHandle)
	Helper function to release the handle and eventually the referenced parameter set (if the reference counter falls to 0). More...

static void	evalUnit (char unit, tdble dest, int flg)
	Support function to multiply or divide dest with unit conversion factor. More...

static void	insertParamMerge (struct parmHandle parmHandle, char path, struct param paramRef, struct param param)
	Helper function to merge a parameter into a parameter set. More...

static void	insertParam (struct parmHandle parmHandle, char path, struct param *param)
	Helper function to insert a parameter into a parameter set. More...

Detailed Description

Internal (not exported) helper functions, not part of the API.

Function Documentation

◆ addParam()

static struct param * addParam	(	struct parmHeader *	conf,
		struct section *	section,
		const char *	paramName,
		const char *	value
	)

static

Helper function to add parameter, does not check for duplicated name.

Parameters

[in,out]	conf	parameter set header
[in,out]	section	section to add parameter to
[in]	paramName	parameter name
[in]	value	value of parameter

Returns: param
NULL on error

Definition at line 346 of file params.cpp.

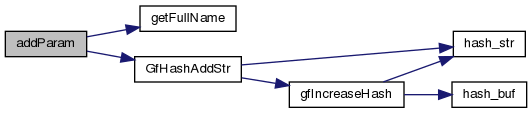

Here is the call graph for this function:

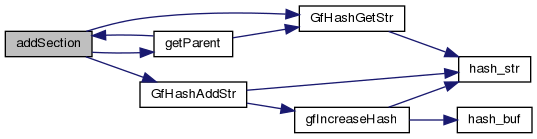

◆ addSection()

static struct section * addSection	(	struct parmHeader *	conf,
		const char *	sectionName
	)

static

Helper function to add a section to a parameter set.

Parameters

[in,out]	conf	parameter set header
[in]	sectionName	section name

Returns: section on success
NULL on error

Definition at line 481 of file params.cpp.

Here is the call graph for this function:

◆ addWithin()

static void addWithin	(	struct param *	curParam,
		char *	s1
	)

static

Helper function to add "within" options to parameter curParam.

Parameters

[in]	curParam	parameter to add "within" option
[in]	s1	option string

Definition at line 648 of file params.cpp.

◆ cleanUnusedSection()

static void cleanUnusedSection	(	struct parmHeader *	conf,
		struct section *	section
	)

static

Helper function to clean up unused (empty) sections starting with given section.

Parameters

[in,out]	conf	parameter set header
[in]	section	section to start up cleaning

Note: A section is unused if it does not contain subsections or elements, or if the fullName property is empty. If the given section is in use nothing is changed. If the section is unused it gets cleaned up and the process continues with the parent section (could now be empty as well).

Definition at line 291 of file params.cpp.

Here is the call graph for this function:

◆ createIn()

static void createIn	(	char *	buf,
		const int	BUFSIZE,
		withinHead *	head
	)

static

Helper function to support the serialization into the XML of the "within" attribute.

Parameters

[in,out]	buf	buffer for the result
[in]	BUFSIZE	buffer size
[in]	head	head of the list with the within options

Definition at line 1325 of file params.cpp.

◆ createIndent()

static void createIndent	(	char *	buf,
		const int	BUFSIZE,
		const int	blanks
	)

static

Helper function for indentation in the XML.

Parameters

[in,out]	buf	buffer for the result
[in]	BUFSIZE	buffer size
[in]	blanks	number of blanks to write

Definition at line 1307 of file params.cpp.

◆ createParmHeader()

static struct parmHeader* createParmHeader ( const char * file )

static

Helper function to create header for parameter set handle.

Parameters

[in] file filename

Returns: parmHeader in case of success
NULL on error

Definition at line 582 of file params.cpp.

Here is the call graph for this function:

◆ evalUnit()

static void evalUnit	(	char *	unit,
		tdble *	dest,
		int	flg
	)

static

Support function to multiply or divide dest with unit conversion factor.

This function is used by GfParmUnit2SI and GfParmSI2Unit. The given unit string gets split up and processed unit by unit with evalUnit.

Parameters

[in]	unit	unit name from dest
[in,out]	dest	pointer to value to convert
	flg	multiply (0) or divide (otherwise)

See also: GfParmUnit2SI; GfParmSI2Unit

Definition at line 1859 of file params.cpp.

◆ getFullName()

static char * getFullName	(	const char *	sectionName,
		const char *	paramName
	)

static

Helper function to get the full name of a parameter (full name: "sectionName/paramName").

Parameters

[in]	sectionName	name of the section containing the parameter
[in]	paramName	name of the parameter

Returns: string
NULL on error

Note: Heap memory is allocated for the return value, so the caller is responsible for releasing the memory of the returned string.

Definition at line 187 of file params.cpp.

◆ getParamByName()

static struct param * getParamByName	(	struct parmHeader *	conf,
		const char *	sectionName,
		const char *	paramName,
		int	flag
	)

static

Helper function to get (or create) a parameter by name.

Parameters

[in,out]	conf	parameter set header
[in]	sectionName	name of the section containing the parameter
[in]	paramName	name of the parameter
[in]	flag	if in flag the PARAM_CREATE bit is set the parameter gets created if it is not found

Returns: param
NULL on error or not found

Definition at line 213 of file params.cpp.

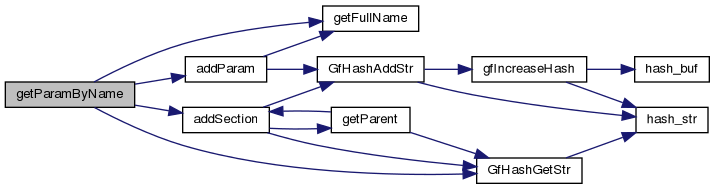

Here is the call graph for this function:

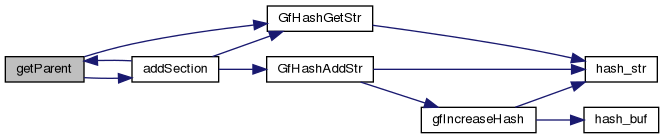

◆ getParent()

static struct section * getParent	(	struct parmHeader *	conf,
		const char *	sectionName
	)

static

Helper function to get (or create if not found) parent section of section given in sectionName.

Parameters

[in]	conf	parameter set header
[in]	sectionName	name of the section

Returns: section
NULL on error

Definition at line 441 of file params.cpp.

Here is the call graph for this function:

◆ getSharedHeader()

static struct parmHeader* getSharedHeader	(	const char *	file,
		int	mode
	)

static

Helper function for looking up parameter sets in the cache.

Parameters

file name of the file to look up

mode opening mode is a mask of:
GFPARM_RMODE_STD if the parameter set is already loaded and not private return a handle pointing to the existing parameter set (default)
GFPARM_RMODE_REREAD re-read the parameters file
GFPARM_RMODE_CREAT if the parameters file does not exist return a handle pointing to an empty parameter set (does not create a file on disk, this is done using GfParmWriteFile).
GFPARM_RMODE_PRIVATE mark handle as private

Returns: handle to parameter set
0 if not in cache

See also: GfParmReadFile

Definition at line 546 of file params.cpp.

Here is the call graph for this function:

◆ getValNumFromStr()

static tdble getValNumFromStr ( const char * str )

static

Helper function to parse number.

Parameters

[in] str number as string

Returns: number

Definition at line 674 of file params.cpp.

◆ handleEntities()

static char* handleEntities	(	char *	buf,
		const int	BUFSIZE,
		const char *	val
	)

static

Helper function to convert the input line given in val into proper XML notation, the output goes into buf.

Parameters

[in,out]	buf	buffer for the processed line
[in]	BUFSIZE	buffer size
[in]	val	input line

Returns: pointer to given buffer buf

Definition at line 1254 of file params.cpp.

◆ insertParam()

static void insertParam	(	struct parmHandle *	parmHandle,
		char *	path,
		struct param *	param
	)

static

Helper function to insert a parameter into a parameter set.

If the parameter param already exists in paramHandle, the values are overwritten with the values from param. If the parameter param does not yet exist in paramHandle, it gets created.

Parameters

[in,out]	parmHandle	parameter set handle
[in]	path	path to the parameter
[in]	param	parameter

See also: GfParmMergeHandles

Definition at line 2906 of file params.cpp.

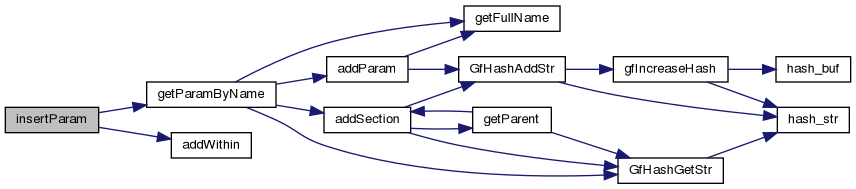

Here is the call graph for this function:

◆ insertParamMerge()

static void insertParamMerge	(	struct parmHandle *	parmHandle,
		char *	path,
		struct param *	paramRef,
		struct param *	param
	)

static

Helper function to merge a parameter into a parameter set.

If the parameter param already exists in paramHandle, the values are overwritten with the values from param. If the parameter param does not yet exist in paramHandle, it gets created. The value and restrictions (min, max, within) in param are checked against the restrictions given by parmRef and adjusted if required.

Parameters

[in,out]	parmHandle	parameter set handle
[in]	path	path to the parameter
[in]	paramRef	reference parameter for min/max boundaries or string set restrictions
[in]	param	parameter

See also: GfParmMergeHandles

Definition at line 2814 of file params.cpp.

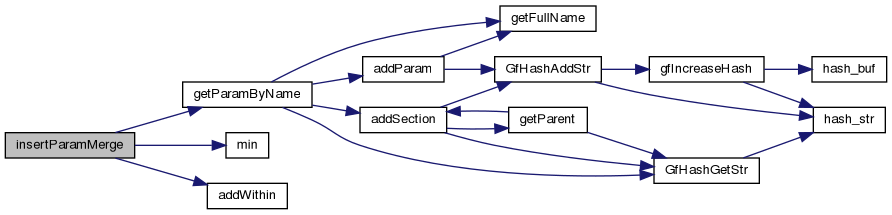

Here is the call graph for this function:

◆ parmClean()

static void parmClean ( struct parmHeader * conf )

static

Helper function to release the parameter set content.

Parameters

[in] conf parameter set header

Definition at line 1719 of file params.cpp.

Here is the call graph for this function:

◆ parmReleaseHandle()

static void parmReleaseHandle ( struct parmHandle * parmHandle )

static

Helper function to release the handle and eventually the referenced parameter set (if the reference counter falls to 0).

Parameters

[in] parmHandle parameter set handle

See also: GfParmReleaseHandle; GfParmWriteFile; GfParmReadFile

Definition at line 1802 of file params.cpp.

Here is the call graph for this function:

◆ parmReleaseHeader()

static void parmReleaseHeader ( struct parmHeader * conf )

static

Helper function to release the parameter set if the reference counter is 0.

Parameters

[in] conf parameter set header

See also: GfParmReleaseHandle; GfParmWriteFile; GfParmReadFile

Definition at line 1765 of file params.cpp.

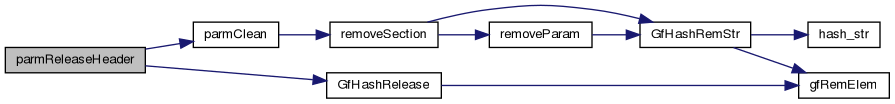

Here is the call graph for this function:

◆ parserXmlInit()

static int parserXmlInit ( struct parmHandle * parmHandle )

static

Helper function to set up XML parser in parmHandle.

Parameters

[in] parmHandle parameter set handle

Definition at line 1072 of file params.cpp.

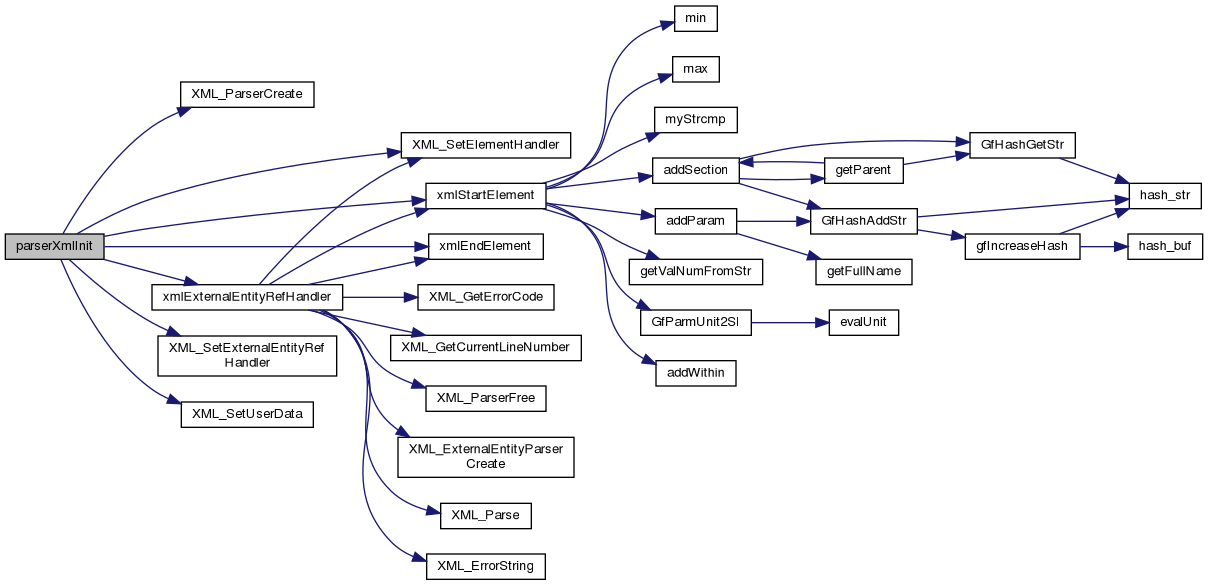

Here is the call graph for this function:

◆ parseXml()

static int parseXml	(	struct parmHandle *	parmHandle,
		char *	buf,
		int	len,
		int	done
	)

static

Helper function to parse one line of XML.

Parameters

[in,out]	parmHandle	parameter set handle
[in]	buf	line to parse
[in]	len	buffer size
[in]	done	this was the last slice, no more input available

Returns: 0 ok
1 error

Definition at line 1049 of file params.cpp.

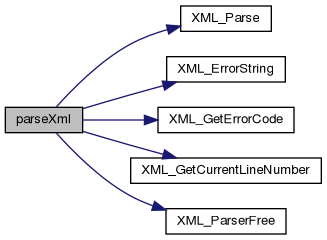

Here is the call graph for this function:

◆ removeParam()

static void removeParam	(	struct parmHeader *	conf,
		struct section *	section,
		struct param *	param
	)

static

Helper function to remove given parameter.

Parameters

[in,out]	conf	parameter set header
[in,out]	section	section to remove parameter from
[in]	param	parameter to remove

Definition at line 316 of file params.cpp.

Here is the call graph for this function:

◆ removeParamByName()

static void removeParamByName	(	struct parmHeader *	conf,
		const char *	sectionName,
		const char *	paramName
	)

static

Helper function to remove a parameter with given name paramName.

Parameters

[in,out]	conf	parameter set header
[in]	sectionName	name of the section containing the parameter
[in]	paramName	name of the parameter

Note: cleanUnusedSection is called after removing the parameter.

Definition at line 254 of file params.cpp.

Here is the call graph for this function:

◆ removeSection()

static void removeSection	(	struct parmHeader *	conf,
		struct section *	section
	)

static

Helper function to remove a section and its contents (subsections, elements).

Parameters

[in,out]	conf	parameter set header
[in]	section	section to remove

Definition at line 411 of file params.cpp.

Here is the call graph for this function:

◆ xmlEndElement()

static void xmlEndElement	(	void *	userData,
		const XML_Char *	name
	)

static

Helper function to process closing XML elements.

Parameters

[in,out]	userData	handle to parameter set to read data into
[in]	name	name of the current XML element

Definition at line 943 of file params.cpp.

◆ xmlExternalEntityRefHandler()

static int xmlExternalEntityRefHandler	(	XML_Parser	mainparser,
		const XML_Char *	openEntityNames,
		const XML_Char *	base,
		const XML_Char *	systemId,
		const XML_Char *	publicId
	)

static

Helper function to handle external XML entities (XML referencing over multiple files/URI's).

Parameters

[in]	mainparser	parent XML parser
[in]	openEntityNames	space separated list of names of entities that are open for the parse of this entity
[in]	base	unused (base path for resolving system id)
[in]	systemId	path to external entity (SYSTEM in XML)
[in]	publicId	unused (public identifier of external entity, PUBLIC in XML)

Returns: 1 ok
0 error

Definition at line 973 of file params.cpp.

Here is the call graph for this function:

◆ xmlGetOuputLine()

static int xmlGetOuputLine	(	struct parmHandle *	parmHandle,
		char *	buffer,
		int	size
	)

static

Helper function to output one line of XML generated from the given parameter set.

The parameter set handle parmHandle keeps track of the progress internally.

Parameters

[in,out]	parmHandle	parameter set handle
[in,out]	buffer	buffer for the line
[in]	size	buffer size

Returns: 1 more lines available
0 done

Definition at line 1373 of file params.cpp.

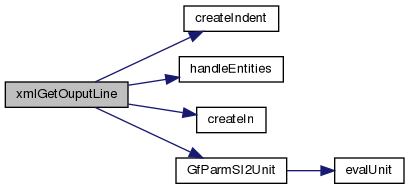

Here is the call graph for this function:

◆ xmlStartElement()

static void xmlStartElement	(	void *	userData,
		const char *	name,
		const char **	atts
	)

static

Helper function to process opening XML elements.

Parameters

[in,out]	userData	handle to parameter set to read data into
[in]	name	name of the current XML element
[in]	atts	attributes of the XML element

Definition at line 698 of file params.cpp.

Here is the call graph for this function:
