The Gaming Framework API. More...

#include <stdio.h>
#include <sys/param.h>
#include <assert.h>
#include <stdlib.h>
#include <stdarg.h>
#include <cstring>
#include <math.h>
#include <osspec.h>

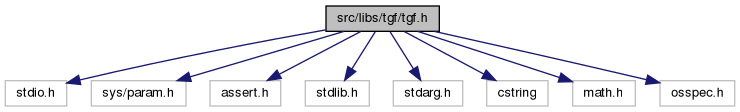

Include dependency graph for tgf.h:

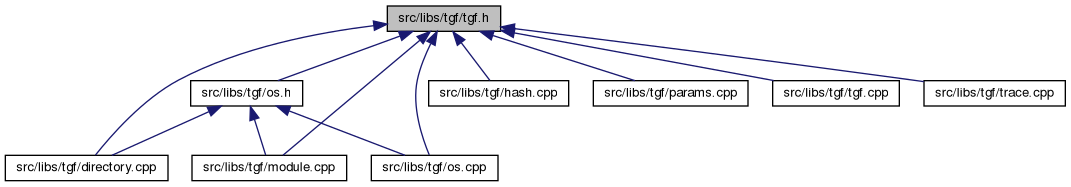

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	t3Df

struct	t3Dd
	3D point. More...

struct	t3Di

struct	tPosd
	6 DOF position. More...

struct	tDynPt
	Dynamic point structure. More...

struct	tForces
	Forces and moments. More...

struct	ModInfo
	Module information structure. More...

struct	ModList
	list of module interfaces More...

struct	FList
	List of (DLL) files for a Directory. More...

struct	tMeanVal

Macros
#define	MAX(x, y) ((x) > (y) ? (x) : (y))

#define	MIN(x, y) ((x) < (y) ? (x) : (y))

#define	FREEZ(x)

#define	freez FREEZ

#define	RADS2RPM(x) ((x)*9.549296585)
	Radian/s to RPM conversion. More...

#define	RPM2RADS(x) ((x)*.104719755)
	RPM to Radian/s conversion. More...

#define	RAD2DEG(x) ((x)*(180.0/PI))
	Radian to degree conversion. More...

#define	DEG2RAD(x) ((x)*(PI/180.0))
	Degree to radian conversion. More...

#define	FEET2M(x) ((x)*0.304801)
	Feet to meter conversion. More...

#define	SIGN(x) ((x) < 0.0f ? -1.0f : 1.0f)
	Sign of the expression. More...

#define	NORM0_2PI(x)
	Angle normalization between 0 and 2 * PI. More...

#define	NORM_PI_PI(x)
	Angle normalization between -PI and PI. More...

#define	DIST(x1, y1, x2, y2) sqrt(((x1) - (x2)) * ((x1) - (x2)) + ((y1) - (y2)) * ((y1) - (y2)))
	Distance between two points. More...

#define	MAX_MOD_ITF 10
	Maximum number of interface in one DLL. More...

#define	GFPARM_PARAMETER 0
	Parameter file. More...

#define	GFPARM_TEMPLATE 1
	Template file. More...

#define	GFPARM_PARAM_STR "param"

#define	GFPARM_TEMPL_STR "template"

#define	GFPARM_MODIFIABLE 1
	Parameter file allowed to be modified. More...

#define	GFPARM_WRITABLE 2
	Parameter file allowed to be saved on disk. More...

#define	GFPARM_RMODE_STD 0x01
	if handle already openned return it More...

#define	GFPARM_RMODE_REREAD 0x02
	reread the parameters from file and release the previous ones More...

#define	GFPARM_RMODE_CREAT 0x04
	Create the file if doesn't exist. More...

#define	GFPARM_RMODE_PRIVATE 0x08

#define	GFPARM_MMODE_SRC 1
	use ref and modify existing parameters with tgt More...

#define	GFPARM_MMODE_DST 2
	use tgt and verify ref parameters More...

#define	GFPARM_MMODE_RELSRC 4
	release ref after the merge More...

#define	GFPARM_MMODE_RELDST 8
	release tgt after the merge More...

#define	GfTrace printf

#define	GfError printf

#define	GfOut printf

#define	GF_MEAN_MAX_VAL 5

#define	GF_TAILQ_HEAD(name, type)
	Head type definition. More...

#define	GF_TAILQ_ENTRY(type)
	Entry in structure. More...

#define	GF_TAILQ_FIRST(head) ((head)->tqh_first)
	First element of a TAILQ. More...

#define	GF_TAILQ_NEXT(elm, field) ((elm)->field.tqe_next)
	Next element of a TAILQ. More...

#define	GF_TAILQ_END(head) NULL
	End of a TAILQ. More...

#define	GF_TAILQ_LAST(head, headname) ((((struct headname )((head)->tqh_last))->tqh_last))
	Last element of a TAILQ. More...

#define	GF_TAILQ_PREV(elm, headname, field) ((((struct headname )((elm)->field.tqe_prev))->tqh_last))
	Previous element of a TAILQ. More...

#define	GF_TAILQ_INIT(head)
	Head initialization (Mandatory) More...

#define	GF_TAILQ_INIT_ENTRY(elm, field)
	Entry initialization (optionnal if inserted) More...

#define	GF_TAILQ_INSERT_HEAD(head, elm, field)
	Insert an element at the head. More...

#define	GF_TAILQ_INSERT_TAIL(head, elm, field)
	Insert an element at the tail. More...

#define	GF_TAILQ_INSERT_AFTER(head, listelm, elm, field)
	Insert an element after another element. More...

#define	GF_TAILQ_INSERT_BEFORE(listelm, elm, field)
	Insert an element before another element. More...

#define	GF_TAILQ_REMOVE(head, elm, field)
	Remove an element. More...

#define	START_PROFILE(a)

#define	STOP_PROFILE(a)

#define	STOP_ACTIVE_PROFILES()

#define	PRINT_PROFILE()

#define	GF_HASH_TYPE_STR 0
	String key based hash table. More...

#define	GF_HASH_TYPE_BUF 1
	Memory buffer key based hash table. More...

#define	GF_DIR_CREATION_FAILED 0

#define	GF_DIR_CREATED 1

Typedefs
typedef float	tdble
	Floating point type used in TORCS. More...

typedef int(*	tfModPrivInit) (int index, void *)
	initialisation of the function table More...

typedef struct ModInfo	tModInfo
	Module information structure. More...

typedef int(*	tfModInfo) (tModInfo *)

typedef struct ModList	tModList
	list of module interfaces More...

typedef struct FList	tFList
	List of (DLL) files for a Directory. More...

typedef void(*	tfDirfreeUserData) (void *)
	Function to call for releasing the user data associated with file entry. More...

typedef void(*	tfHashFree) (const void *)
	Function to call for releasing the user data associated with hash table. More...

Functions
void	GfInit (void)

int	GfModLoad (unsigned int gfid, char dllname, tModList *modlist)
	Load the specified DLLs. More...

int	GfModLoadDir (unsigned int gfid, char dir, tModList *modlist)
	Load the DLLs in the specified directory. More...

int	GfModUnloadList (tModList **modlist)
	Unload the DLLs of a list. More...

int	GfModInfo (unsigned int gfid, char filename, tModList *modlist)
	Get the generic information of the specified DLL. More...

int	GfModInfoDir (unsigned int gfid, char dir, int level, tModList *modlist)
	Get the generic module information of the DLLs of the specified directory. More...

int	GfModFreeInfoList (tModList **modlist)
	Free the info contained in the specified list. More...

tFList *	GfDirGetList (const char *dir)
	Get the list of files of a given directory. More...

tFList *	GfDirGetListFiltered (const char dir, const char suffix)
	Get the list of files with matching suffix of a given directory. More...

void	GfDirFreeList (tFList *list, tfDirfreeUserData freeUserDatabool, bool freename=false, bool freedispname=false)
	Free a directory list. More...

void *	GfParmReadFile (const char *file, int mode)
	Read parameter set from file and return handle to parameter set. More...

int	GfParmWriteFile (const char file, void handle, const char *name)
	Write parameter set into file. More...

int	GfParmCreateDirectory (const char file, void parmHandle)
	Create directory for parameter set handle if it does not yet exist. More...

char *	GfParmGetName (void *handle)
	Get the name property of the parameter set handle. More...

char *	GfParmGetFileName (void *handle)
	Get the filename property of the parameter set handle. More...

void	GfParmSetDTD (void parmHandle, char dtd, char *header)
	Set the dtd path and header. More...

const char *	GfParmGetStr (void handle, const char path, const char key, const char deflt)
	Get a string parameter from the parameter set handle. More...

const char *	GfParmGetCurStr (void handle, const char path, const char key, const char deflt)
	Get a string parameter from the parameter set handle based on subsection iteration. More...

int	GfParmSetStr (void handle, const char path, const char key, const char val)
	Set a string parameter in the parameter set handle. More...

int	GfParmSetCurStr (void handle, const char path, const char key, const char val)
	Set a string parameter in the parameter set handle based on subsection iteration. More...

tdble	GfParmGetNum (void handle, const char path, const char key, const char unit, tdble deflt)
	Get a numerical parameter from the parameter set handle. More...

tdble	GfParmGetCurNum (void handle, const char path, const char key, const char unit, tdble deflt)
	Get a numerical parameter from the parameter set handle based on subsection iteration. More...

int	GfParmSetNum (void handle, const char path, const char key, const char unit, tdble val)
	Set a numerical parameter in the parameter set handle. More...

int	GfParmSetNumEx (void handle, const char path, const char key, const char unit, tdble val, tdble min, tdble max)
	Set a numerical parameter in the parameter set handle including min and max. More...

int	GfParmSetCurNum (void handle, const char path, const char key, const char unit, tdble val)
	Set a numerical parameter in the parameter set handle based on subsection iteration. More...

void	GfParmClean (void *handle)
	Clean all the parameters of a parameter set. More...

void	GfParmReleaseHandle (void *handle)
	Release given parameter set handle parmHandle. More...

tdble	GfParmUnit2SI (const char *unit, tdble val)
	Convert a value given in unit to SI. More...

tdble	GfParmSI2Unit (const char *unit, tdble val)
	Convert a value from SI to given unit. More...

int	GfParmCheckHandle (void ref, void tgt)
	Check the values in the parameter set tgt against the min/max/within definitions in the ref parameter set. More...

void *	GfParmMergeHandles (void ref, void tgt, int mode)
	Merge two parameter sets into a new one, either containing parameters from ref, tgt or from both sets, the ref and tgt sets are not changed. More...

int	GfParmGetNumBoundaries (void handle, const char path, const char key, tdble min, tdble *max)
	Get the min and max of a numerical parameter from the parameter set handle. More...

int	GfParmGetEltNb (void handle, const char path)
	Count the number of subsections in a section in the parameter set handle. More...

int	GfParmListSeekFirst (void handle, const char path)
	Go the the first subsection element in the parameter set handle. More...

int	GfParmListSeekNext (void handle, const char path)
	Go the the next subsection element in the parameter set handle. More...

char *	GfParmListGetCurEltName (void handle, const char path)
	Get current subsection name of the parameter set handle during subsection iteration. More...

int	GfParmListClean (void handle, const char path)
	Remove all the subsections in a section in the parameter set handle. More...

static void	GfFatal (const char *fmt,...)

double	GfTimeClock (void)
	Get the time in seconds. More...

tdble	gfMean (tdble v, tMeanVal *pvt, int n, int w)

void	gfMeanReset (tdble v, tMeanVal *pvt)

char *	GetLocalDir (void)

void	SetLocalDir (char *buf)

char *	GetLibDir (void)

void	SetLibDir (char *buf)

char *	GetDataDir (void)

void	SetDataDir (char *buf)

int	GetSingleTextureMode (void)

void	SetSingleTextureMode (void)

int	GfNearestPow2 (int x)

int	GfCreateDir (char *path)
	Create directory for given path recursively, so all missing parent directories are created as well. More...

int	GfCreateDirForFile (const char *filenameandpath)
	Create directory for given file path recursively, so all missing parent directories are created as well. More...

void *	GfHashCreate (int type)
	Create a new hash table. More...

int	GfHashAddStr (void hash, const char key, const void *data)
	Add an element with a string key to a hash table. More...

const void *	GfHashRemStr (void hash, char key)
	Remove an element with a string key from a hash table. More...

const void *	GfHashGetStr (void hash, const char key)
	Get the user data associated with a string key. More...

void	GfHashAddBuf (void hash, char key, size_t sz, void *data)
	Add an element with a memory buffer key to a hash table. More...

const void *	GfHashRemBuf (void hash, char key, size_t sz)
	Remove an element with a memory buffer key from a hash table. More...

const void *	GfHashGetBuf (void hash, char key, size_t sz)
	Get the user data associated with a memory buffer key. More...

void	GfHashRelease (void *hash, tfHashFree hashFree)
	Release a hash table. More...

const void *	GfHashGetFirst (void *hash)
	Get the first user data of a hash table, this is used for table scans. More...

const void *	GfHashGetNext (void *hash)
	Get the next user data of a hash table, this is used for table scans. More...

Variables
const double	PI = 3.14159265358979323846
	PI. More...

const tdble	G = 9.80665f
	m/s/s More...

Detailed Description

The Gaming Framework API.

Author: Bernhard Wymann, Eric Espie

Version: $Id$

Definition in file tgf.h.

Macro Definition Documentation

◆ DEG2RAD

#define DEG2RAD ( x ) ((x)*(PI/180.0))

Degree to radian conversion.

Definition at line 76 of file tgf.h.

◆ DIST

#define DIST	(	x1,
		y1,
		x2,
		y2
	)	sqrt(((x1) - (x2)) * ((x1) - (x2)) + ((y1) - (y2)) * ((y1) - (y2)))

Distance between two points.

Definition at line 97 of file tgf.h.

◆ FEET2M

#define FEET2M ( x ) ((x)*0.304801)

Feet to meter conversion.

Definition at line 77 of file tgf.h.

◆ FREEZ

#define FREEZ ( x )

Value:

do {                \
    if (x) {                    \
    free(x);                \
    x = 0;                  \
    }                       \
} while (0)

Definition at line 60 of file tgf.h.

◆ freez

#define freez FREEZ

Definition at line 67 of file tgf.h.

◆ GF_DIR_CREATED

#define GF_DIR_CREATED 1

Definition at line 623 of file tgf.h.

◆ GF_DIR_CREATION_FAILED

#define GF_DIR_CREATION_FAILED 0

Definition at line 622 of file tgf.h.

◆ GF_HASH_TYPE_BUF

#define GF_HASH_TYPE_BUF 1

Memory buffer key based hash table.

Definition at line 607 of file tgf.h.

◆ GF_HASH_TYPE_STR

#define GF_HASH_TYPE_STR 0

String key based hash table.

Definition at line 606 of file tgf.h.

◆ GF_MEAN_MAX_VAL

#define GF_MEAN_MAX_VAL 5

Definition at line 383 of file tgf.h.

◆ GfError

#define GfError printf

Definition at line 351 of file tgf.h.

◆ GfOut

#define GfOut printf

Definition at line 373 of file tgf.h.

◆ GFPARM_MMODE_DST

#define GFPARM_MMODE_DST 2

use tgt and verify ref parameters

Definition at line 314 of file tgf.h.

◆ GFPARM_MMODE_RELDST

#define GFPARM_MMODE_RELDST 8

release tgt after the merge

Definition at line 316 of file tgf.h.

◆ GFPARM_MMODE_RELSRC

#define GFPARM_MMODE_RELSRC 4

release ref after the merge

Definition at line 315 of file tgf.h.

◆ GFPARM_MMODE_SRC

#define GFPARM_MMODE_SRC 1

use ref and modify existing parameters with tgt

Definition at line 313 of file tgf.h.

◆ GFPARM_MODIFIABLE

#define GFPARM_MODIFIABLE 1

Parameter file allowed to be modified.

Definition at line 261 of file tgf.h.

◆ GFPARM_PARAM_STR

#define GFPARM_PARAM_STR "param"

Definition at line 257 of file tgf.h.

◆ GFPARM_PARAMETER

#define GFPARM_PARAMETER 0

Parameter file.

Definition at line 255 of file tgf.h.

◆ GFPARM_RMODE_CREAT

#define GFPARM_RMODE_CREAT 0x04

Create the file if doesn't exist.

Definition at line 267 of file tgf.h.

◆ GFPARM_RMODE_PRIVATE

#define GFPARM_RMODE_PRIVATE 0x08

Definition at line 268 of file tgf.h.

◆ GFPARM_RMODE_REREAD

#define GFPARM_RMODE_REREAD 0x02

reread the parameters from file and release the previous ones

Definition at line 266 of file tgf.h.

◆ GFPARM_RMODE_STD

#define GFPARM_RMODE_STD 0x01

if handle already openned return it

Definition at line 265 of file tgf.h.

◆ GFPARM_TEMPL_STR

#define GFPARM_TEMPL_STR "template"

Definition at line 258 of file tgf.h.

◆ GFPARM_TEMPLATE

#define GFPARM_TEMPLATE 1

Template file.

Definition at line 256 of file tgf.h.

◆ GFPARM_WRITABLE

#define GFPARM_WRITABLE 2

Parameter file allowed to be saved on disk.

Definition at line 262 of file tgf.h.

◆ GfTrace

#define GfTrace printf

Definition at line 336 of file tgf.h.

◆ MAX

#define MAX	(	x,
		y
	)	((x) > (y) ? (x) : (y))

Definition at line 53 of file tgf.h.

◆ MAX_MOD_ITF

#define MAX_MOD_ITF 10

Maximum number of interface in one DLL.

See also: ModList

Definition at line 185 of file tgf.h.

◆ MIN

#define MIN	(	x,
		y
	)	((x) < (y) ? (x) : (y))

Definition at line 57 of file tgf.h.

◆ NORM0_2PI

#define NORM0_2PI ( x )

Value:

do {                        \
    while ((x) > 2.0*PI) { (x) -= (tdble) (2.0*PI); }   \
    while ((x) < 0.0) { (x) += (tdble) (2.0*PI); }  \
} while (0)

Angle normalization between 0 and 2 * PI.

Definition at line 81 of file tgf.h.

◆ NORM_PI_PI

#define NORM_PI_PI ( x )

Value:

do {                        \
    while ((x) > PI) { (x) -= (tdble) (2.0*PI); }   \
    while ((x) < -PI) { (x) += (tdble) (2.0*PI); }  \
} while (0)

Angle normalization between -PI and PI.

Definition at line 88 of file tgf.h.

◆ PRINT_PROFILE

#define PRINT_PROFILE ( )

Definition at line 600 of file tgf.h.

◆ RAD2DEG

#define RAD2DEG ( x ) ((x)*(180.0/PI))

Radian to degree conversion.

Definition at line 75 of file tgf.h.

◆ RADS2RPM

#define RADS2RPM ( x ) ((x)*9.549296585)

Radian/s to RPM conversion.

Definition at line 73 of file tgf.h.

◆ RPM2RADS

#define RPM2RADS ( x ) ((x)*.104719755)

RPM to Radian/s conversion.

Definition at line 74 of file tgf.h.

◆ SIGN

#define SIGN ( x ) ((x) < 0.0f ? -1.0f : 1.0f)

Sign of the expression.

Definition at line 78 of file tgf.h.

◆ START_PROFILE

#define START_PROFILE ( a )

Definition at line 597 of file tgf.h.

◆ STOP_ACTIVE_PROFILES

#define STOP_ACTIVE_PROFILES ( )

Definition at line 599 of file tgf.h.

◆ STOP_PROFILE

#define STOP_PROFILE ( a )

Definition at line 598 of file tgf.h.

Typedef Documentation

◆ tfDirfreeUserData

typedef void(* tfDirfreeUserData) (void *)

Function to call for releasing the user data associated with file entry.

Definition at line 240 of file tgf.h.

◆ tfHashFree

typedef void(* tfHashFree) (const void *)

Function to call for releasing the user data associated with hash table.

Definition at line 609 of file tgf.h.

◆ tFList

typedef struct FList tFList

List of (DLL) files for a Directory.

See also: GfDirGetList

◆ tfModInfo

typedef int(* tfModInfo) (tModInfo *)

Definition at line 200 of file tgf.h.

◆ tfModPrivInit

typedef int(* tfModPrivInit) (int index, void *)

initialisation of the function table

See also: ModInfo

Definition at line 180 of file tgf.h.

◆ tModInfo

typedef struct ModInfo tModInfo

Module information structure.

◆ tModList

typedef struct ModList tModList

list of module interfaces

Function Documentation

◆ GetDataDir()

char* GetDataDir ( void )

Definition at line 257 of file tgf.cpp.

◆ GetLibDir()

char* GetLibDir ( void )

Definition at line 244 of file tgf.cpp.

◆ GetLocalDir()

char* GetLocalDir ( void )

Definition at line 231 of file tgf.cpp.

◆ GetSingleTextureMode()

int GetSingleTextureMode ( void )

Definition at line 273 of file tgf.cpp.

◆ GfCreateDir()

int GfCreateDir ( char * path )

Create directory for given path recursively, so all missing parent directories are created as well.

Parameters

[in] path Path

Returns: GF_DIR_CREATED if directory was created or already exits
GF_DIR_CREATION_FAILED if directory could not be created

Definition at line 309 of file tgf.cpp.

Here is the call graph for this function:

◆ GfCreateDirForFile()

int GfCreateDirForFile ( const char * filenameandpath )

Create directory for given file path recursively, so all missing parent directories are created as well.

Parameters

[in] filenameandpath Path including file name

Returns: GF_DIR_CREATED if directory was created or already exits
GF_DIR_CREATION_FAILED if directory could not be created

See also: GfCreateDir

Definition at line 364 of file tgf.cpp.

Here is the call graph for this function:

◆ GfFatal()

static void GfFatal	(	const char *	fmt,
			...
	)

inlinestatic

Definition at line 339 of file tgf.h.

◆ GfInit()

void GfInit ( void )

Definition at line 138 of file tgf.cpp.

Here is the call graph for this function:

◆ gfMean()

tdble gfMean	(	tdble	v,
		tMeanVal *	pvt,
		int	n,
		int	w
	)

Definition at line 157 of file tgf.cpp.

◆ gfMeanReset()

void gfMeanReset	(	tdble	v,
		tMeanVal *	pvt
	)

Definition at line 147 of file tgf.cpp.

◆ GfNearestPow2()

int GfNearestPow2 ( int x )

Definition at line 285 of file tgf.cpp.

◆ GfTimeClock()

double GfTimeClock ( void )

Get the time in seconds.

Returns: Time in seconds since the start of the system

Definition at line 50 of file os.cpp.

◆ SetDataDir()

void SetDataDir ( char * buf )

Definition at line 263 of file tgf.cpp.

◆ SetLibDir()

void SetLibDir ( char * buf )

Definition at line 250 of file tgf.cpp.

◆ SetLocalDir()

void SetLocalDir ( char * buf )

Definition at line 237 of file tgf.cpp.

◆ SetSingleTextureMode()

void SetSingleTextureMode ( void )

Definition at line 279 of file tgf.cpp.

Variable Documentation

◆ G

const tdble G = 9.80665f

m/s/s

Definition at line 70 of file tgf.h.

◆ PI

const double PI = 3.14159265358979323846

PI.

Definition at line 69 of file tgf.h.

Classes

Macros

Typedefs

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ DEG2RAD

◆ DIST

◆ FEET2M

◆ FREEZ

◆ freez

◆ GF_DIR_CREATED

◆ GF_DIR_CREATION_FAILED

◆ GF_HASH_TYPE_BUF

◆ GF_HASH_TYPE_STR

◆ GF_MEAN_MAX_VAL

◆ GfError

◆ GfOut

◆ GFPARM_MMODE_DST

◆ GFPARM_MMODE_RELDST

◆ GFPARM_MMODE_RELSRC

◆ GFPARM_MMODE_SRC

◆ GFPARM_MODIFIABLE

◆ GFPARM_PARAM_STR

◆ GFPARM_PARAMETER

◆ GFPARM_RMODE_CREAT

◆ GFPARM_RMODE_PRIVATE

◆ GFPARM_RMODE_REREAD

◆ GFPARM_RMODE_STD

◆ GFPARM_TEMPL_STR

◆ GFPARM_TEMPLATE

◆ GFPARM_WRITABLE

◆ GfTrace

◆ MAX

◆ MAX_MOD_ITF

◆ MIN

◆ NORM0_2PI

◆ NORM_PI_PI

◆ PRINT_PROFILE

◆ RAD2DEG

◆ RADS2RPM

◆ RPM2RADS

◆ SIGN

◆ START_PROFILE

◆ STOP_ACTIVE_PROFILES

◆ STOP_PROFILE

Typedef Documentation

◆ tfDirfreeUserData

◆ tfHashFree

◆ tFList

◆ tfModInfo

◆ tfModPrivInit

◆ tModInfo

◆ tModList

Function Documentation

◆ GetDataDir()

◆ GetLibDir()

◆ GetLocalDir()

◆ GetSingleTextureMode()

◆ GfCreateDir()

◆ GfCreateDirForFile()

◆ GfFatal()

◆ GfInit()

◆ gfMean()

◆ gfMeanReset()

◆ GfNearestPow2()

◆ GfTimeClock()

◆ SetDataDir()

◆ SetLibDir()

◆ SetLocalDir()

◆ SetSingleTextureMode()

Variable Documentation

◆ G

◆ PI
