cGrBackgroundCam Class Reference

#include <grcam.h>

Inheritance diagram for cGrBackgroundCam:

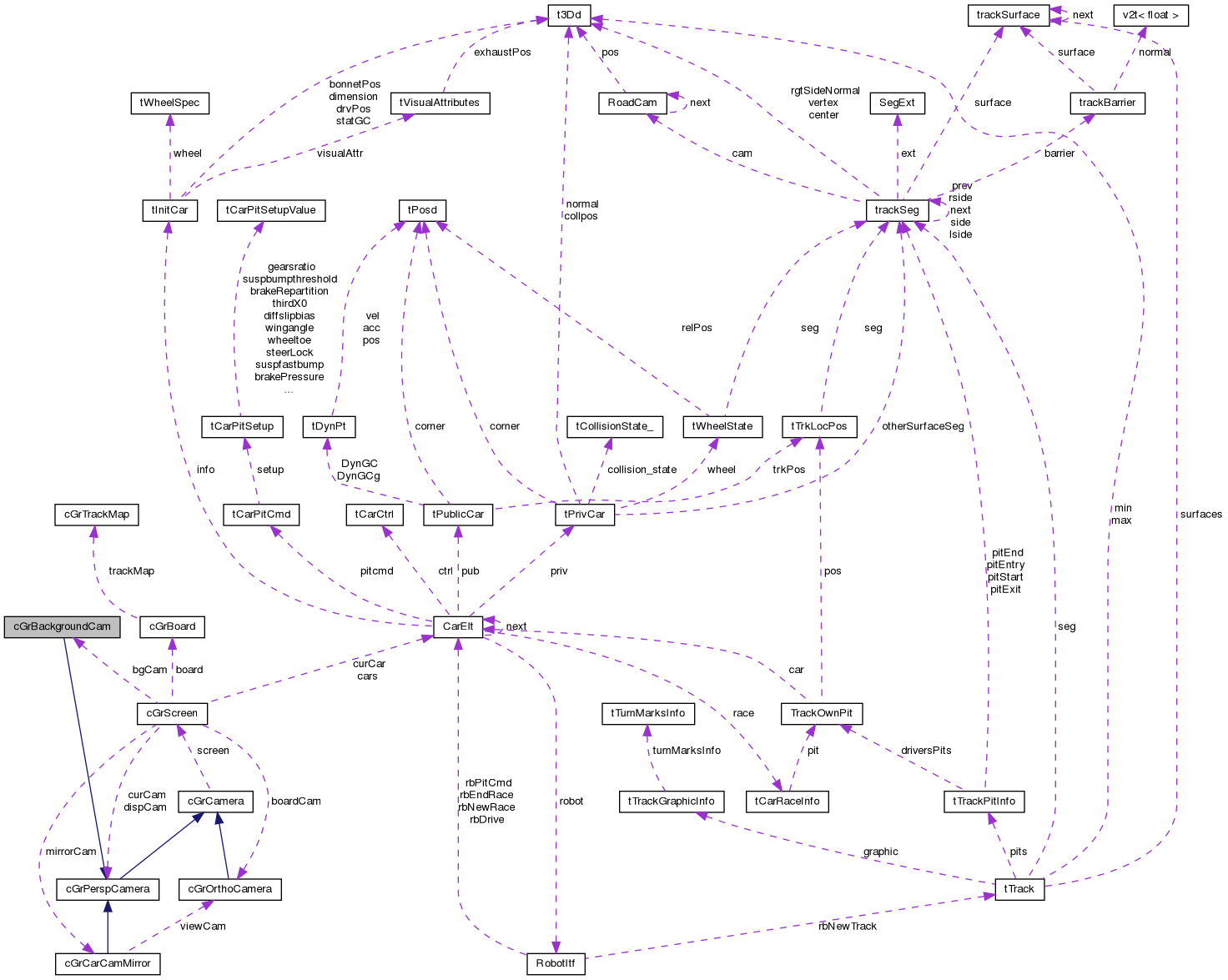

Collaboration diagram for cGrBackgroundCam:

Public Member Functions
	cGrBackgroundCam (class cGrScreen *myscreen)
void	update (tCarElt *car, tSituation *s)
void	update (cGrCamera *curCam)
void	limitFov (void)
Public Member Functions inherited from cGrPerspCamera
	cGrPerspCamera (class cGrScreen *myscreen, int id, int drawCurr, int drawDrv, int drawBG, int mirrorAllowed, float myfovy, float myfovymin, float myfovymax, float myfnear, float myffar=1500.0, float myfogstart=1400.0, float myfogend=1500.0)
void	setProjection (void)
void	setModelView (void)
void	loadDefaults (char *attr)
void	setZoom (int cmd)
float	getLODFactor (float x, float y, float z)
float	getFogStart (void)
float	getFogEnd (void)
cGrPerspCamera *	next (void)
void	limitFov (void)
void	onSelect (tCarElt *car, tSituation *s)
virtual float	getFovY (void)
Public Member Functions inherited from cGrCamera
	cGrCamera (class cGrScreen *myscreen, int myid=0, int mydrawCurrent=0, int mydrawdrv=0, int mydrawBackground=0, int mymirrorAllowed=0)
virtual	~cGrCamera ()
void	action (void)
int	getId (void)
int	getDrawCurrent (void)
int	getDrawDriver (void)
int	getDrawBackground (void)
int	isMirrorAllowed (void)
t3Dd *	getPos (void)
sgVec3 *	getPosv (void)
sgVec3 *	getWorldPosv (void)
sgVec3 *	getSpeedv (void)
t3Dd *	getCenter (void)
sgVec3 *	getCenterv (void)
t3Dd *	getUp (void)
sgVec3 *	getUpv (void)
void	add (tGrCamHead *head)
void	remove (tGrCamHead *head)
float	getDist2 (tCarElt *car)
cGrCamera *	next (void)

Additional Inherited Members
Protected Member Functions inherited from cGrCamera
void	setLocalRenderCoordinates (void)
void	rebaseLocalRenderCoordinates (void)
Protected Attributes inherited from cGrPerspCamera
float	fovy
float	fovymin
float	fovymax
float	fovydflt
float	fnear
float	ffar
float	fogstart
float	fogend
Protected Attributes inherited from cGrCamera
sgVec3	speed
sgVec3	eye
sgVec3	center
sgVec3	up
int	renderCoordinatesLocal
sgVec3	renderOrigin
class cGrScreen *	screen

Detailed Description

Definition at line 231 of file grcam.h.

Constructor & Destructor Documentation

cGrBackgroundCam()

cGrBackgroundCam::cGrBackgroundCam ( class cGrScreen * myscreen )

inline

Definition at line 234 of file grcam.h.

Here is the call graph for this function:

Member Function Documentation

limitFov()

void cGrBackgroundCam::limitFov ( void )

inline

Definition at line 244 of file grcam.h.

update() [1/2]

void cGrBackgroundCam::update

(

cGrCamera *

curCam

)

Definition at line 287 of file grcam.cpp.

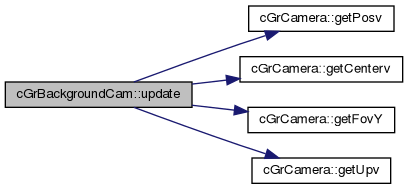

Here is the call graph for this function:

update() [2/2]

void cGrBackgroundCam::update ( tCarElt * car, tSituation * s )

inlinevirtual

Implements cGrPerspCamera.

Definition at line 241 of file grcam.h.

---

The documentation for this class was generated from the following files:

• C:/Users/berni/Development/torcs_git/torcs-code/torcs/torcs/src/modules/graphic/ssggraph/grcam.h
• C:/Users/berni/Development/torcs_git/torcs-code/torcs/torcs/src/modules/graphic/ssggraph/grcam.cpp
