Robot Module Interface

Interface for robot modules, robot modules are discovered and loaded during runtime. More...

Collaboration diagram for Robot Module Interface:

Files
file	robot.h
	Robot Module Interface Definition.

Classes
struct	RobotItf
	Interface Structure for Robots. More...

Typedefs
typedef void(*	tfRbNewTrack) (int index, tTrack *track, void *carHandle, void **myCarSettings, tSituation *s)
	Callback function prototype for robot module, give the robot the track view, called for every track change or new race. More...
typedef void(*	tfRbNewRace) (int index, tCarElt *car, tSituation *s)
	Callback function prototype for robot module, initialization for new race. More...
typedef void(*	tfRbEndRace) (int index, tCarElt *car, tSituation *s)
	Callback function prototype for robot module, teardown after race, this is currently NOT called by TORCS. More...
typedef void(*	tfRbDrive) (int index, tCarElt *car, tSituation *s)
	Callback function prototype for robot module, driving the car. More...
typedef void(*	tfRbShutdown) (int index)
	Callback function prototype for robot module, shutdown robot instance for given index. More...
typedef int(*	tfRbPitCmd) (int index, tCarElt *car, tSituation *s)
	Callback function prototype for robot module, handing over pit stop commands. More...
typedef struct RobotItf	tRobotItf
	Interface Structure for Robots. More...

Detailed Description

Interface for robot modules, robot modules are discovered and loaded during runtime.

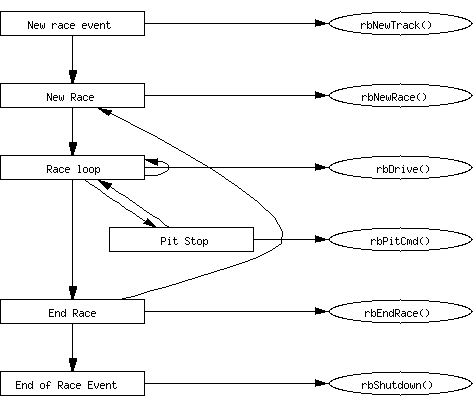

Multiple robot modules can be loaded at the same time, one robot module can host up to 10 instances of a robot. This is the call flow of the robots callbacks during a race event.
The square boxes are for the race manager and the ellipses are for the robot.

A detailed robot tutorial is available, visit www.torcs.org for details.

Typedef Documentation

tfRbDrive

typedef void(* tfRbDrive) (int index, tCarElt *car, tSituation *s)

Callback function prototype for robot module, driving the car.

Parameters

[in]	index	Index of the robot instance
[in,out]	car	Car, the tCarCtrl is modified to return the driving commands
[in]	s	Situation

Definition at line 81 of file robot.h.

tfRbEndRace

typedef void(* tfRbEndRace) (int index, tCarElt *car, tSituation *s)

Callback function prototype for robot module, teardown after race, this is currently NOT called by TORCS.

Parameters

[in]	index	Index of the robot instance
[in]	car	Car
[in]	s	Situation

Definition at line 73 of file robot.h.

tfRbNewRace

typedef void(* tfRbNewRace) (int index, tCarElt *car, tSituation *s)

Callback function prototype for robot module, initialization for new race.

Parameters

[in]	index	Index of the robot instance
[in]	car	Car
[in]	s	Situation

Definition at line 65 of file robot.h.

tfRbNewTrack

typedef void(* tfRbNewTrack) (int index, tTrack *track, void *carHandle, void **myCarSettings, tSituation *s)

Callback function prototype for robot module, give the robot the track view, called for every track change or new race.

Parameters

[in]	index	Index of the robot instance
[in]	track	Track
[in]	carhandle	Original car parameter set, intended for read only by the robot
[out]	myCarSettings	Robot instance specific parameter set
[in]	s	Situation

Definition at line 57 of file robot.h.

tfRbPitCmd

typedef int(* tfRbPitCmd) (int index, tCarElt *car, tSituation *s)

Callback function prototype for robot module, handing over pit stop commands.

Parameters

[in]	index	Index of the robot instance
[in,out]	car	Car, the tCarPitCmd is modified to return the pitstop commands (refuel, repair, setup changes)
[in]	s	Situation

Returns

• ROB_PIT_IM, immediate return from pit command
• ROB_PIT_MENU, call the interactive menu for pit command

Definition at line 98 of file robot.h.

tfRbShutdown

typedef void(* tfRbShutdown) (int index)

Callback function prototype for robot module, shutdown robot instance for given index.

Parameters

[in]

index

Index of the robot instance

Definition at line 87 of file robot.h.

tRobotItf

typedef struct RobotItf tRobotItf

Interface Structure for Robots.
